iGuzzini

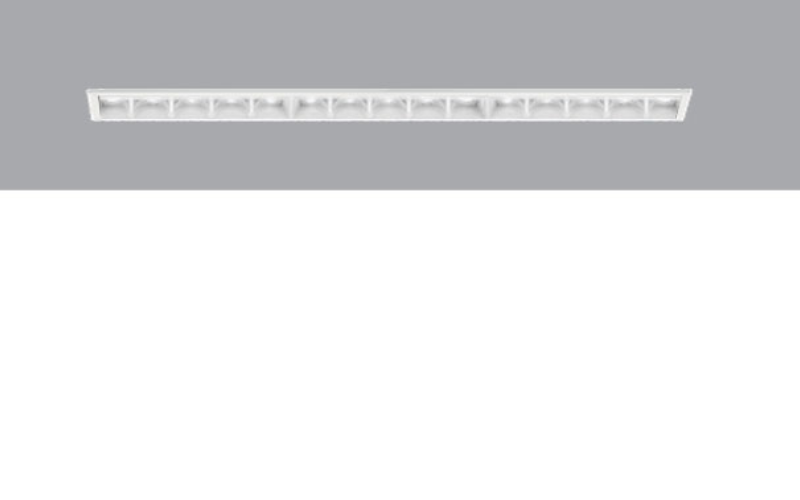

ILB15. Laser Blade Space 15 Cells Trim - NEW CONSTRUCTION WITH HOUSING - INTEGRAL.
Configure
Add to project
RESOURCES
DESCRIPTION
Laser blade is a collection of recessed downlights for architectural applications. Laser Blade optics have evolved through the adoption of Opti Diamond technology, the outcome of a detailed study into materials, engineering and processes that optimise the catadioptric principle, with the result of extraordinary brilliance just like a diamond. Laser blade space is available in 3 aperture size, trim or trimless with generous outputs of up to 2646 lumens and excellent chromatic performance .
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/16"L: 16 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI92
- Watt(Approx)36.6 W
- Lumens(Approx)2646 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeILB15-BS-I-T
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
