Intense Lighting (Leviton)

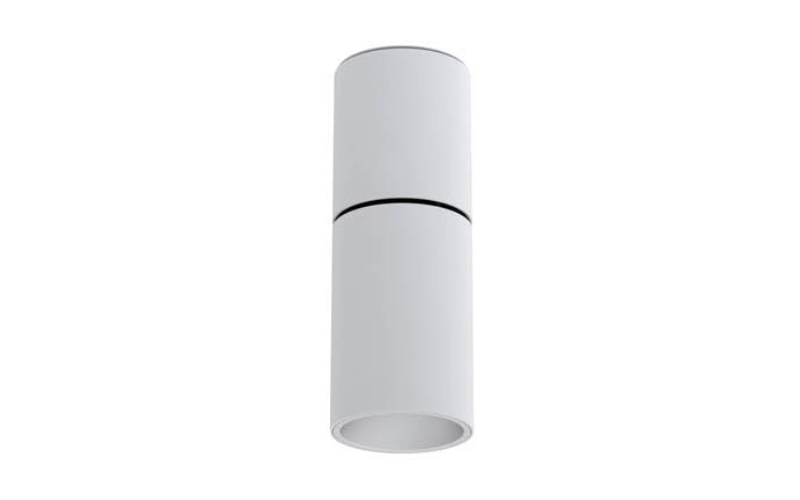

GC4DR. 4” Gravity LED Downlight Cylinder.
Configure
Add to project
RESOURCES
DESCRIPTION
The Gravity 4-inch architectural cylinder is a beautifully designed high-performance LED downlight ideal for spaces where recessed luminaires cannot be accommodated. It features a highly configurable single point source LED package and is capable of delivering up to 4500 lumens. Mounting options include surface, wall, aircraft cable and pendant. The luminaire features a specification grade trim available in 5 distinct finishes and a choice of outputs, CCT’s, CRI options, beam spreads and accessories.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/4"L: 5 1/4"H: 14 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI82 92
- Watt(Approx)10 W14 W19 W24 W30 W36 W43 W46 W54 W
- Lumens(Approx)900 Lm1400 Lm1900 Lm2300 Lm2800 Lm3200 Lm3700 Lm4000 Lm4700 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)EldoLED 0-10V/DALIDMX/RDM
- Controls/Network
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGC4DR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
