Intense Lighting (Leviton)

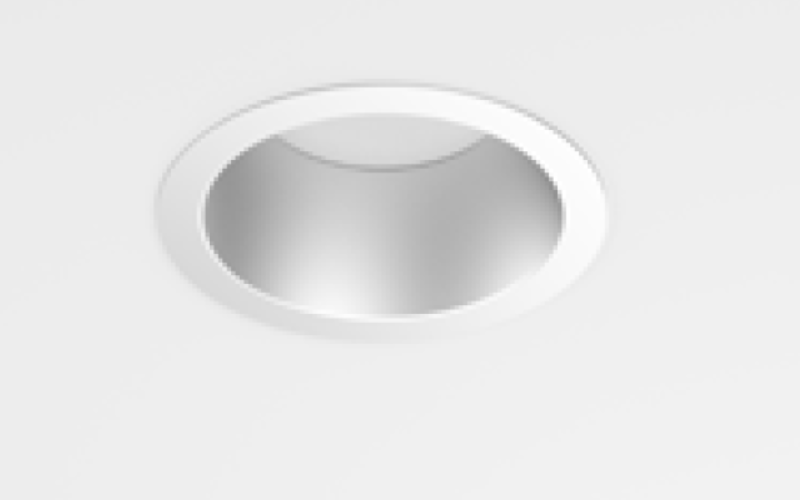

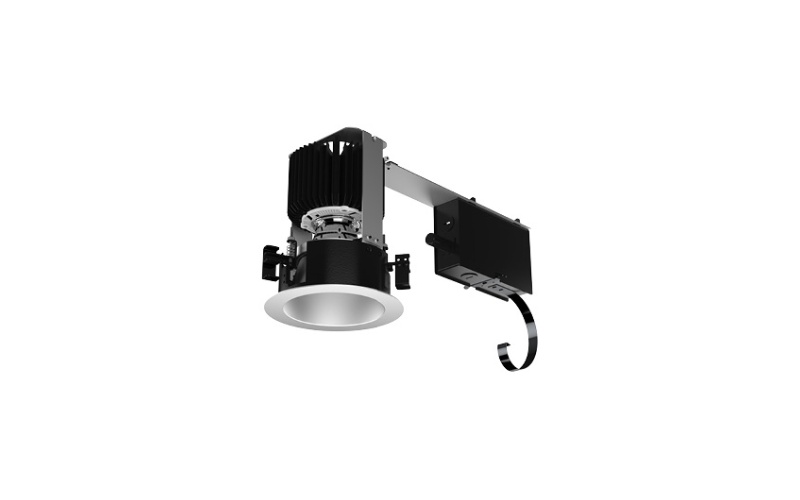

GD4DRR/IRDR402. 4” Gravity LED Remodel Downlight with Regressed Lens - Wet Location.
 Configure
 Add to project
DESCRIPTION
Delivering up to 4700lm, Intense Lighting’s Gravity™ high lumen LED downlighting is ideal for even, quality light distribution in existing ceilings. Gravity delivers when cost of ownership is analyzed. Gravity features field changeable optics, drivers, reflectors, and thermal management.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 6 1/4"
    L: 6 1/4"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    82 92
  • Watt(Approx)
    12 W15 W20 W25 W31 W37 W44 W48 W55 W
  • Lumens(Approx)
    900 Lm1450 Lm1900 Lm2400 Lm2900 Lm3400 Lm3900 Lm4300 Lm4800 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)EldoLED 0-10V/DALIDMX/RDM
  • Controls/Network
  • Power/Voltage
    Integral120V277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETL
  • Environment
    Wet
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New Construction
  • Housing Depth
    3 15/16 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
