Intense Lighting (Leviton)

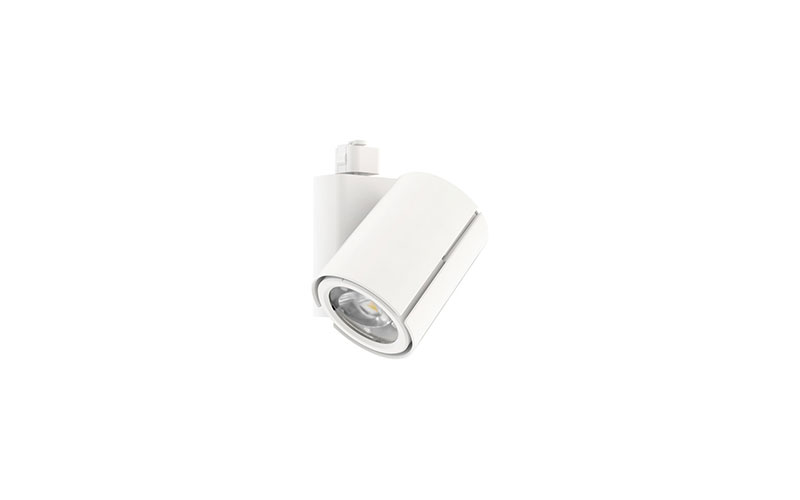

GTW. Gravity Wall Wash Track Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The all-new high-performance GTW track luminaire features beautiful aesthetic details and a proprietary wall wash optic. High performance spacing at 4 feet on center provides 50fc on average. A wall grazing spacing provides even illumination at minimum lower foot candles. Designed for the ultimate in flexibility, Gravity track has no exposed hardware or heatsink and provides up to 100 lm/W.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6 1/2"L: 5 1/2"H: 6 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI82 92
- Watt(Approx)14 W20 W25 W35 W39 W45 W
- Lumens(Approx)1400 Lm1900 Lm2250 Lm2825 Lm3150 Lm3700 Lm
- OpticsDirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Non-DimTRIAC/Forward/Leading0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGTW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
