Intense Lighting (Leviton)

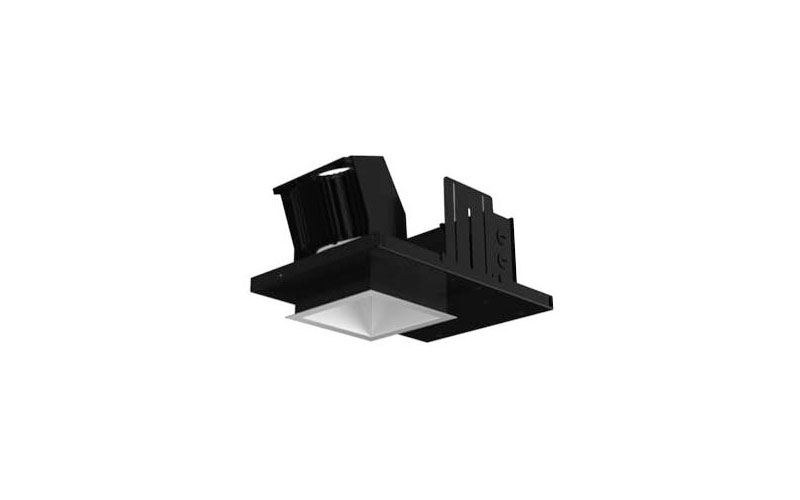

GD4WS / ISW400. 4” Gravity TunableWhite LED Square Wall Wash.
Configure
Add to project


RESOURCES
DESCRIPTION
The Gravity 4-inch Wall Wash featuring Tunable White LED technology gives you the ability to control color temperature and intensity and provides brilliant illumination with high and more vibrant color rendering across the tuning range. Tunable white can be set at any color temperature between 1800K and 6500K and is capable of delivering up to 1050 lumens. A soft diffuse spread lens provides uniform light levels and distribution at up to 4 feet on center. The luminaire comes in round or square specification grade trims in 5 distinct finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 5/8"L: 5 5/8"
- Light SourceLED
- CCT/ColorTunable White
- CRI92
- Watt(Approx)13 W19 W25 W33 W40 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%Lutron T-Series (PSQ0)EldoLED DUAL 0-10VDMX/RDM
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
