Intense Lighting (Leviton)

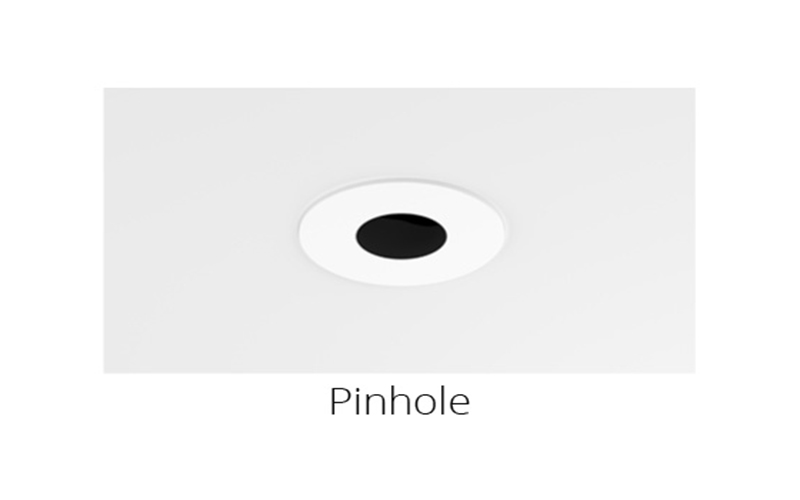

MXG2ARTR. 3.5” MX G2 LED Warm Dim Pinhole.
Configure
Add to project
RESOURCES
DESCRIPTION

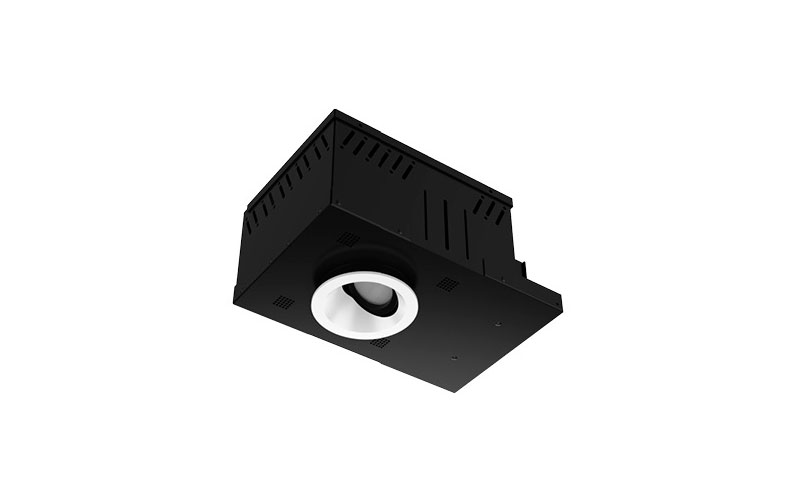

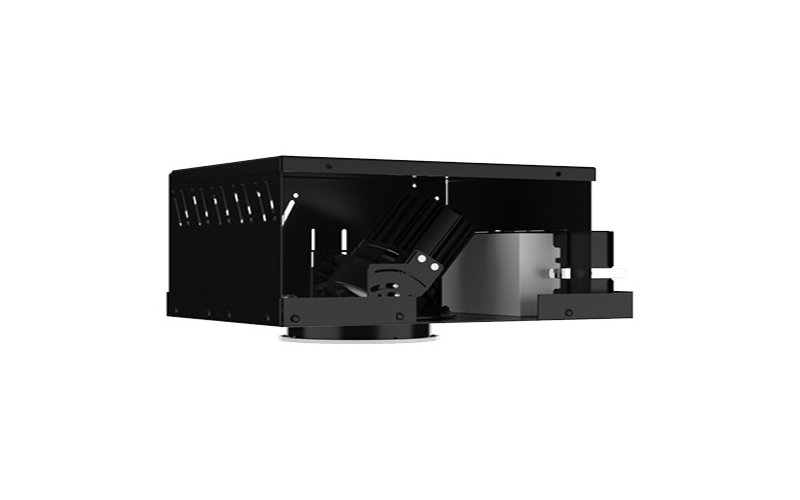

MX downlight Warm Dim features a compact yet powerful light engine inside a 3.5” aperture, shallow housing form factor. Custom, high performance TIR optics ranging from 24° to 50° deliver quality light precisely where you need it . A common platform across the entire family featuring 2 SDCM and four versatile lumen packages makes specifying easy. Architectural grade die cast trims are available in a variety of standard finishes and can be configurable in round, square, trim and trimless options. Non-IC, Air-Tight IC, and CCEA (Chicago Plenum) housing forms are available with the latest in dimming technology including flicker free .1%.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 3/32"L: 4 3/32"
- Light SourceLED
- CCT/Color3000K Dim to Warm
- CRI92
- Watt(Approx)13.5 W16.5 W
- Lumens(Approx)800 Lm950 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)EldoLED 0-10V/DALIDMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth5 3/8 ''7 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMXG2ARTR-WD-P
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
