Intense Lighting (Leviton)

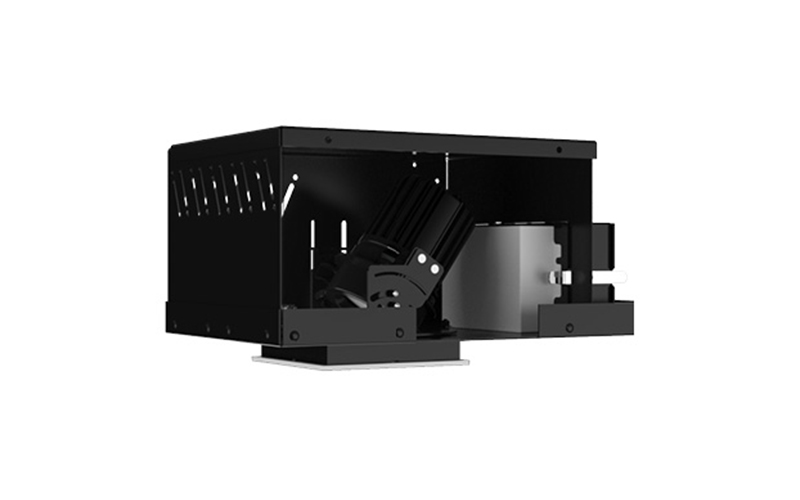

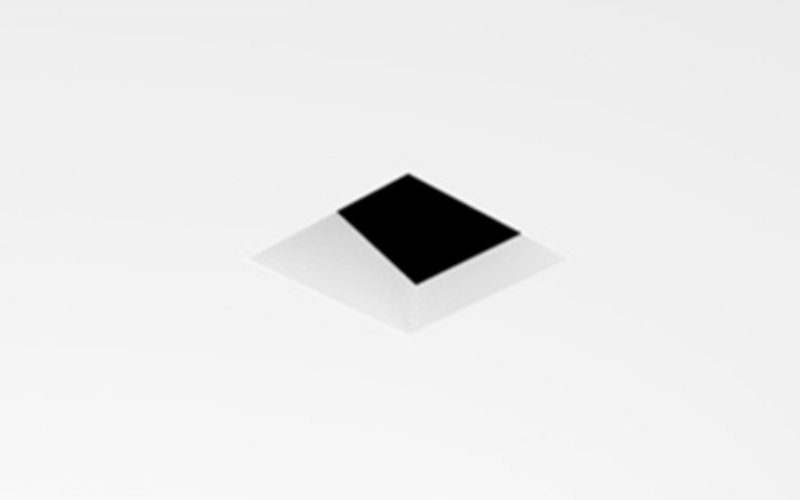

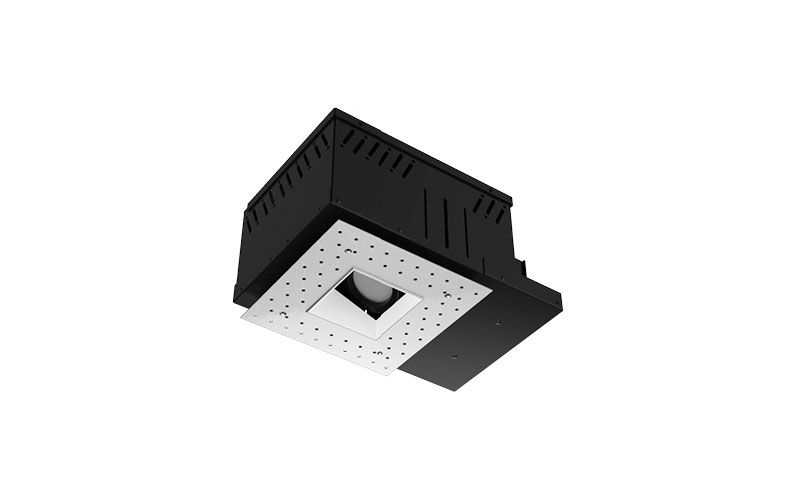

MXG2ASTL. 3.5” MX G2 LED Square Trimless Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION
MX downlighting features a compact yet powerful light engine inside a 3.5” aperture, shallow housing form factor. Custom, high performance TIR optics ranging from 12° to 50° deliver quality light precisely where you need it . A common platform across the entire family featuring 2 SDCM and four versatile lumen packages makes specifying easy. Architectural grade die cast trims are available in a variety of standard finishes and can be configurable in round, square, trim and trimless options. Non-IC, Air-Tight IC, and CCEA (Chicago Plenum) housing forms are available with the latest in dimming technology including flicker free.1%.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/2"L: 3 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI82 92
- Watt(Approx)10 W16 W20 W26 W
- Lumens(Approx)900 Lm1250 Lm1450 Lm1800 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)EldoLED 0-10V/DALIDMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*Energy Star*
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingNew ConstructionIC Air Tight
- Housing Depth5 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
