Insight Lighting
PEX. PILOT EXTERIOR LOW PROFILE COVE/GRAZER COLOR CHANGING AND ACTIVE WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION

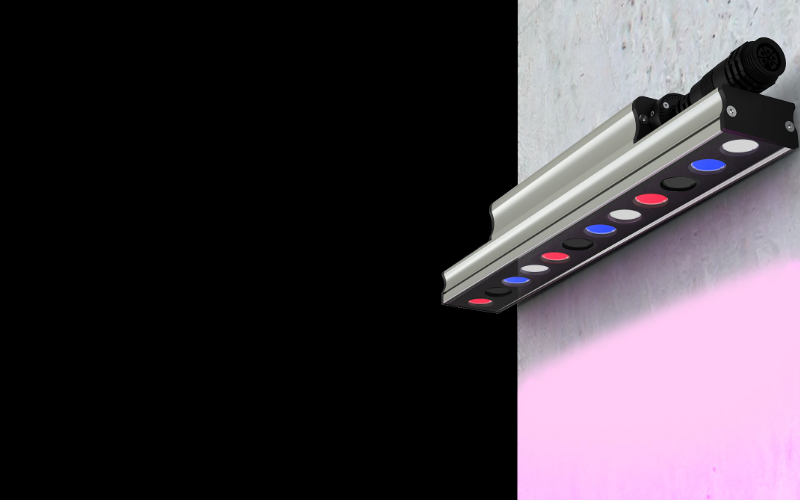

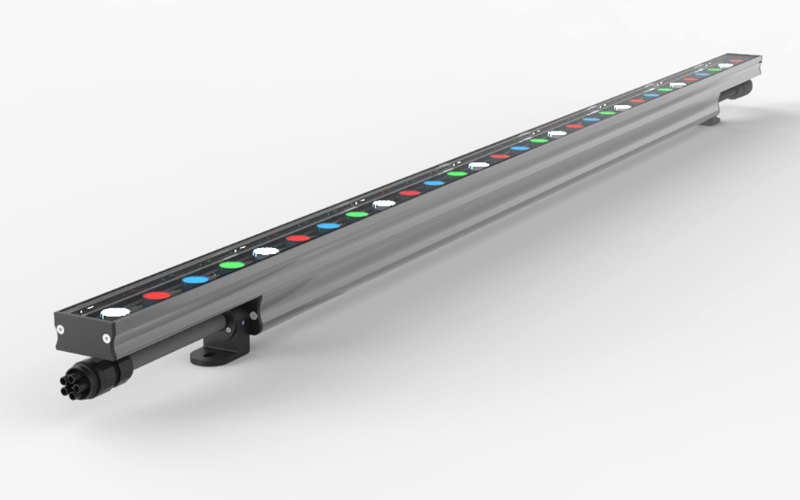

A low-profile cove and wall grazer for exterior applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.75"L: 1 Ft4 FtH: 2.5"
- Light SourceLED
- CCT/ColorTunable WhiteRGBWRGBA
- CRI
- Watt(Approx)6 W/Ft12 W/Ft
- Lumens(Approx)591 Lm/Ft
- OpticsDirectGrazingNarrowMediumFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance75000 h
- CertificatesETLMade in USARoHS
- EnvironmentIP67Natatorium
- Mounting TypeGround Spike/StakeCeiling SurfaceWall SurfaceWall Arm/CantileverGround Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePEX-CC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
