Insight Lighting

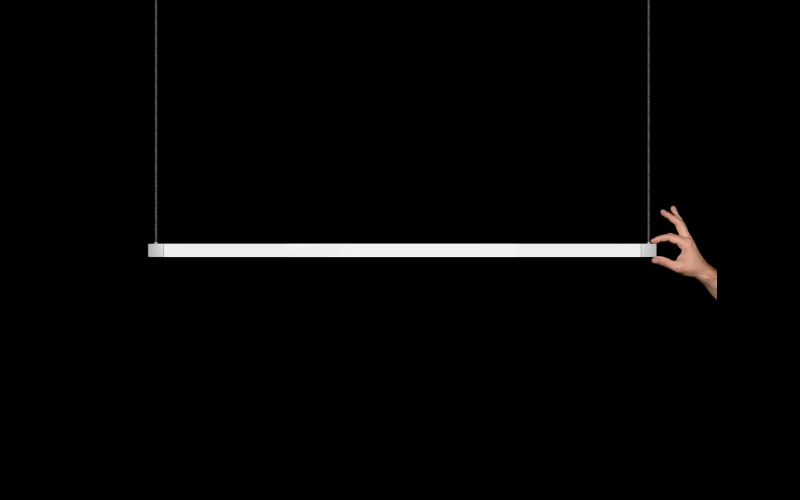

SM. STRUCTURE MINI DIRECT LINEAR WHITE LIGHT
 Configure
 Add to project
Insight Lighting. SM. STRUCTURE MINI DIRECT LINEAR WHITE LIGHT
Insight Lighting. SM. STRUCTURE MINI DIRECT LINEAR WHITE LIGHT
Insight Lighting. SM. STRUCTURE MINI DIRECT LINEAR WHITE LIGHT
Insight Lighting. SM. STRUCTURE MINI DIRECT LINEAR WHITE LIGHT
RESOURCES
DESCRIPTION
The Structure Mini Direct is a compact LED linear luminaire that provides both direct and indirect light.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.25"
    L: 12"24"36"48"60"72"84"96"Run length (Ft)
    H: 1.25"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    82 90
  • Watt(Approx)
    4 W/Ft8 W/Ft12 W/Ft
  • Lumens(Approx)
    340 Lm/Ft884 Lm/Ft
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%0-10VLutron Hi-lume Premier Eco (L3D0E)DMX
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETLMade in USARoHS
  • Environment
  • Mounting Type
    PendantCeiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
