Insight Lighting

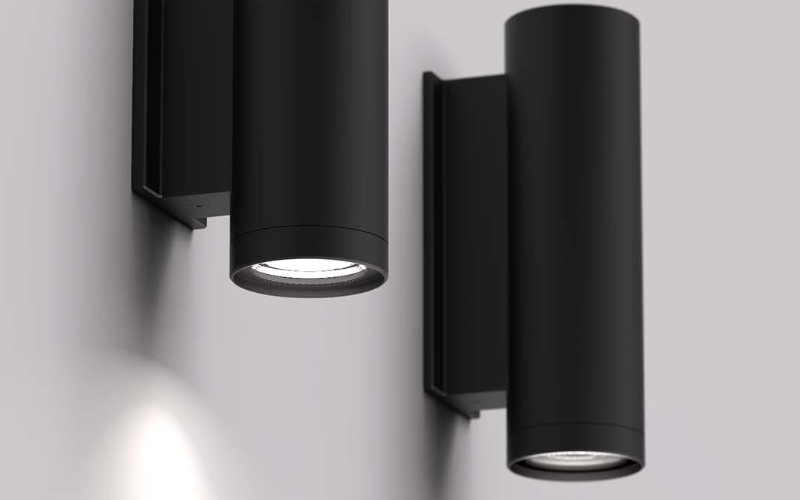

SSM. SCOPE MEDIUM SCONCE CYLINDER UP OR DOWN, UP AND DOWN WHITE LIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
Wattage 10.0 W, 20.0 W
CCT 2700K, 3000K, 3500K, 4000K
Performance Up to 12457 Peak Candela (Single Direction)
Voltage Universal (120-277V)
Power Integrated Power Supply
Controls 0-10V, DMX
Housing Extruded Aluminum
Lens Tempered Glass
Finish High Durability Powder Coating
Operating Temperature -30° C To 50° C
Lumen Maintenance 84,000 Hours
Certification ETL and cETL for Wet Location
CCT 2700K, 3000K, 3500K, 4000K
Performance Up to 12457 Peak Candela (Single Direction)
Voltage Universal (120-277V)
Power Integrated Power Supply
Controls 0-10V, DMX
Housing Extruded Aluminum
Lens Tempered Glass
Finish High Durability Powder Coating
Operating Temperature -30° C To 50° C
Lumen Maintenance 84,000 Hours
Certification ETL and cETL for Wet Location
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: 3"H: 10"14"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)10 W20 W40 W
- Lumens(Approx)2001 Lm4002 Lm
- OpticsDirectIndirectDirect/IndirectMediumFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDMX
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance84000 h
- CertificatesETLMade in USAADARoHS
- EnvironmentIP66Corrosion Resistant
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSSM-UD-WL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
