IRIS (Cooper Lighting Solutions)

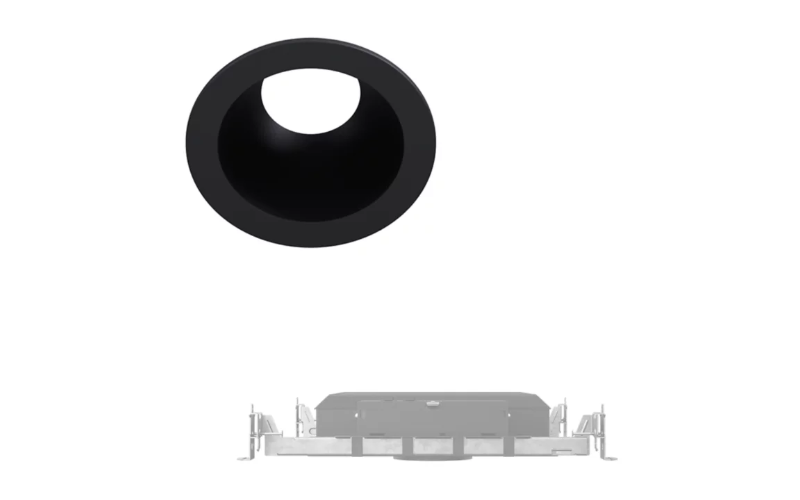

P3DUS. 3'' Ultra Shallow Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION

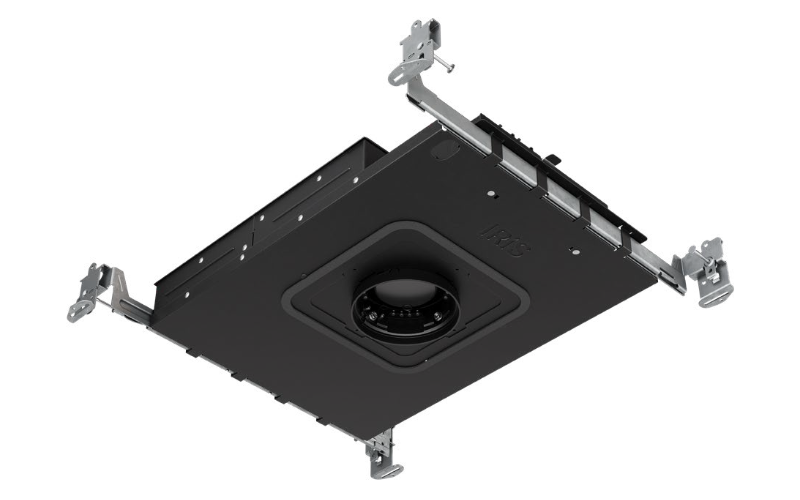

Engineered for restricted plenum spaces, the 3" Ultra-Shallow Downlights deliver boutique-level precision in a compact 2.5" housing. Field-interchangeable optics ensure designers have complete control over beam spread, while translating center beam technology guarantees the light always hits its target—eliminating side glare or shadows. Perfect for tight spaces where architectural control and refined illumination matter most.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"3.69"L: 4"3.69"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K4000K5000KTunable White
- CRI90 97 98
- Watt(Approx)3.6 W7.2 W11 W14.5 W
- Lumens(Approx)343 Lm706 Lm1061 Lm1370 Lm
- OpticsDirectNarrowMediumFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron EcoSystemDMX/RDM
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesUL/CULT24*Energy Star*RoHSDeclareBAA
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingWood
- HousingNew Construction
- Housing Depth2.47 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
