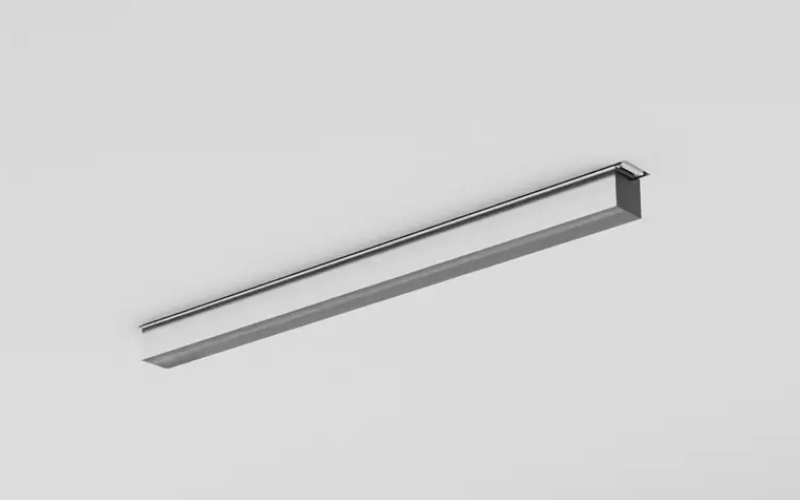

SOR. Sorella Block Clear Diffusing Lens 15/16'' and 9/16''.
Configure
Add to project
RESOURCES
DESCRIPTION
Product Concept
Sorella with acrylic block diffuser has an added unique combination of direct and indirect illumination. Designed with satin edges and clear sides, this model creates a particular architectural statement while distributing the lumens over the entire space. Create an array of linear geometrical light patterns or use this as an accent light for special decorative projects.
Description

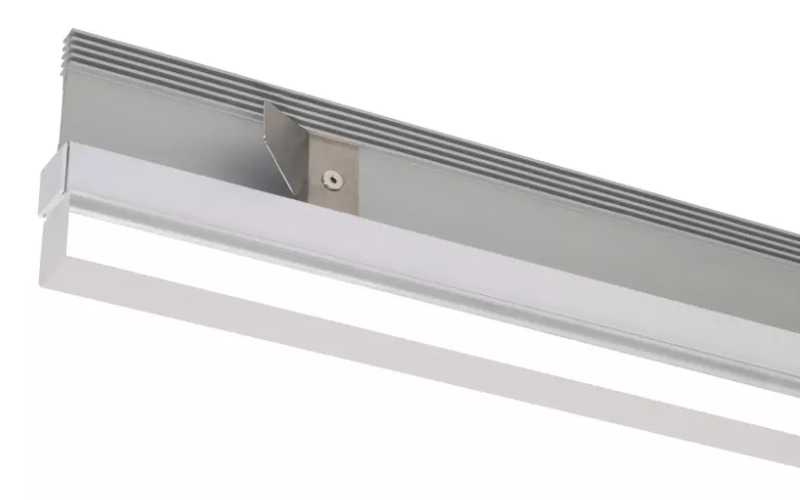

Anodized and painted aluminum extruded body, stainless steel mounting clips, white PC end caps, PMMA lens or PC reflectors.
Sorella with acrylic block diffuser has an added unique combination of direct and indirect illumination. Designed with satin edges and clear sides, this model creates a particular architectural statement while distributing the lumens over the entire space. Create an array of linear geometrical light patterns or use this as an accent light for special decorative projects.
Description
Anodized and painted aluminum extruded body, stainless steel mounting clips, white PC end caps, PMMA lens or PC reflectors.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15/16"9/16"L: 1 Ft2 Ft3 Ft4 FtH: 0.96"
- Light SourceLED
- CCT/Color3000K3500K4000K4500K5000KTunable White
- CRI82
- Watt(Approx)8 W/Ft
- Lumens(Approx)564 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USARoHS
- EnvironmentIP65
- Mounting TypeCeiling RecessedTrimless DrywallT-Bar
- HousingIC
- Housing Depth2.28 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSOR-B
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
