SOR. Sorella Multi-Reflector.
Configure
Add to project
RESOURCES
DESCRIPTION
Product Concept

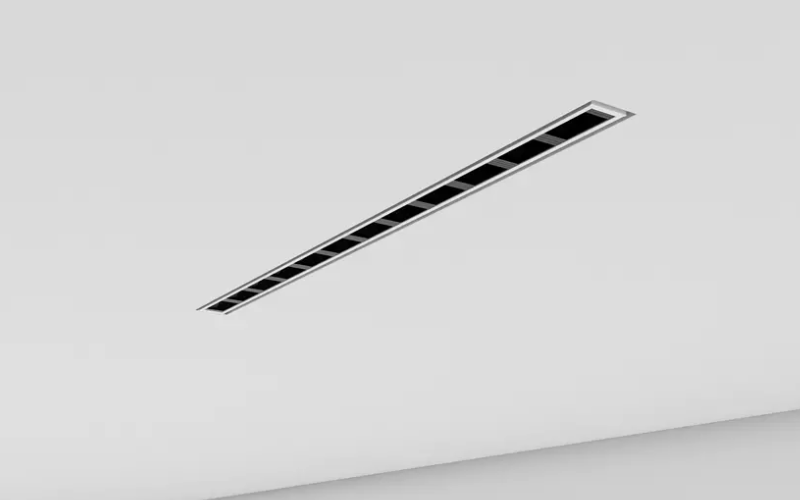

Sorella with full cut-off reflector over each LED and tighter LED spacing for luminance sensitive applications. Ideal for areas with strict glare requirements, while still offering the benefits of a concentrated angle of light on desired task surfaces.
Description
Anodized and painted aluminum extruded body, stainless steel mounting clips, white PC end caps, PMMA lens or PC reflectors.
Sorella with full cut-off reflector over each LED and tighter LED spacing for luminance sensitive applications. Ideal for areas with strict glare requirements, while still offering the benefits of a concentrated angle of light on desired task surfaces.
Description
Anodized and painted aluminum extruded body, stainless steel mounting clips, white PC end caps, PMMA lens or PC reflectors.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15/16"9/16"L: 1 Ft2 Ft3 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K4500K5000KTunable White
- CRI82
- Watt(Approx)8 W/Ft
- Lumens(Approx)784 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USARoHS
- EnvironmentIP65
- Mounting TypeCeiling RecessedTrimless DrywallT-Bar
- HousingIC
- Housing Depth2.28 ''
