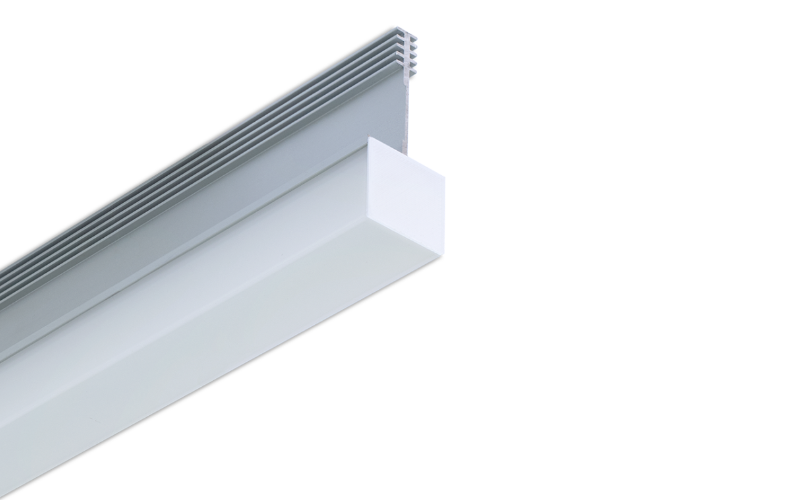

TBECOH/TBECOL. T-BAR ECO Line Voltage 15/16'' Square Lens.
Configure
Add to project
RESOURCES
DESCRIPTION
Product Concept
The T-BAR ECO Line Voltage model offers a more typical approach to wiring with a junction box containing integral driver located on the back of each fixture. The driver features a universal 120-277VAC input and 0-10V dimming, and the junction box has multiple knock-outs for branch circuit connections and continuous row mounting. This power option allows for optimized electrical efficiency providing for exceptionally high lumens per watt.
Description
Anodized aluminum extruded body, steel mounting clips, painted steel end caps, high transmitting acrylic PMMA lens.
The T-BAR ECO Line Voltage model offers a more typical approach to wiring with a junction box containing integral driver located on the back of each fixture. The driver features a universal 120-277VAC input and 0-10V dimming, and the junction box has multiple knock-outs for branch circuit connections and continuous row mounting. This power option allows for optimized electrical efficiency providing for exceptionally high lumens per watt.
Description
Anodized aluminum extruded body, steel mounting clips, painted steel end caps, high transmitting acrylic PMMA lens.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15/16"L: 2 Ft4 FtH: 1"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI82
- Watt(Approx)4.5 W/Ft3.1 W/Ft
- Lumens(Approx)474 Lm/Ft664 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USADLC*RoHS
- Environment
- Mounting TypeCeiling RecessedT-Bar
- HousingChicago PlenumFixture
- Housing Depth1.3 ''
