Juno (Acuity Brands Lighting)

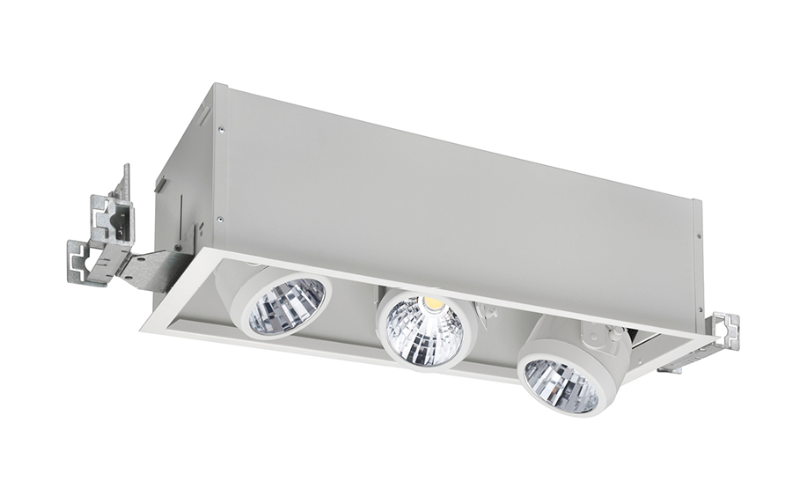

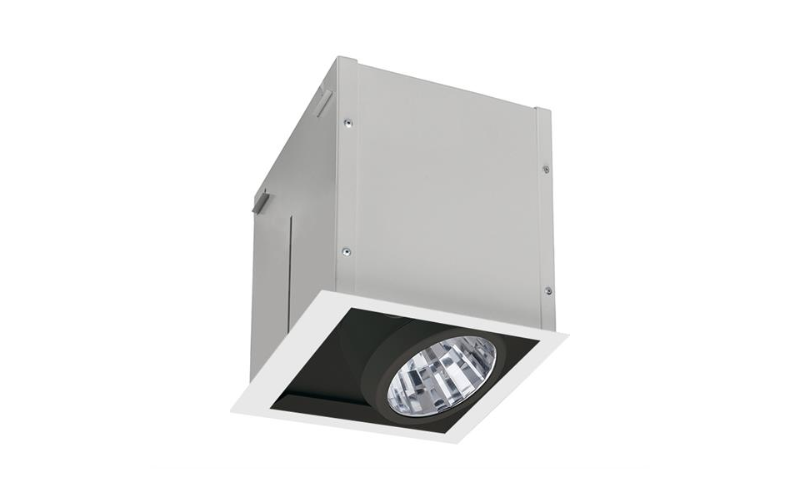

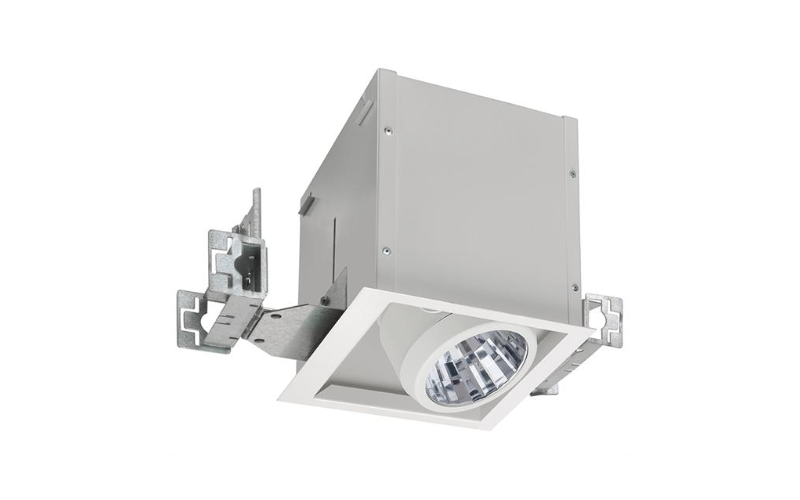

DCS30. DESIGNER COVE 1000/2000/3000 LUMEN LED OPEN APERTURE W/TRIM 1, 2 & 3 HEAD LED UNITS.
Configure
Add to project
RESOURCES
DESCRIPTION
Juno® Designer Cove™ multi-lamp LED fixtures offer exceptional energy & operational efficiencies. They feature 1, 2, or 3 LED luminaires, each producing 1000 lumens, approximating the output of 75W PAR30 halogen while using about 80-percent less energy. The 2000 & 3000 lumen version approximates the output of 39W PAR30 and 70WT4 metal halide, also using significantly less energy. And with a service life of 50,000 hours, LEDs can provide 10 or more years of maintenance free operation in typical retail installations. These open aperture fixtures are available in an attractive flange trim design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9"L: 8 7/8"16 1/2"24 3/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)12.5 W24.9 W34.5 W
- Lumens(Approx)1062 Lm2101 Lm3074 Lm
- OpticsDirectMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULIBEWEnergy Star*RoHSBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth8 3/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDCS30
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
