Juno (Acuity Brands Lighting)
IC1RALED 440LED G4N 06LM. 4'' IC 600 LUMEN LED RECESSED GIMBAL REMODEL.
Configure
Add to project
RESOURCES
DESCRIPTION

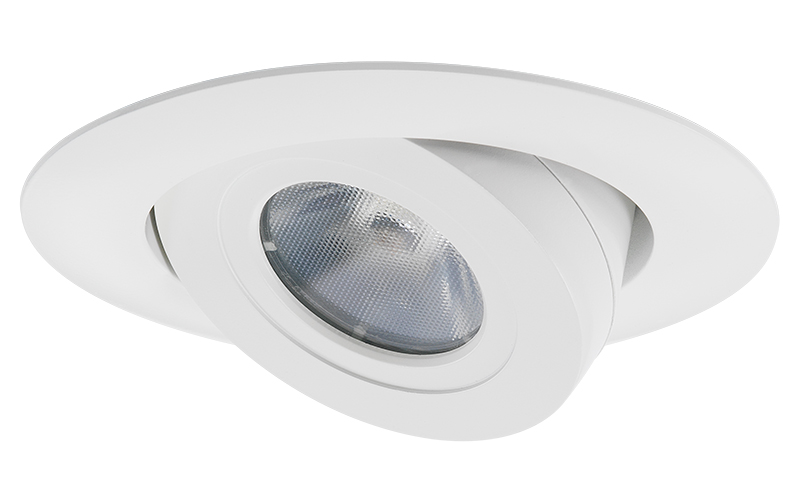

Juno® IC1RALED Series, Dedicated LED, Air-Loc® remodel housing with adjustable accent light trim module. Choice of dimmable drivers: 10.2W nominal dedicated 120 volt driver compatible with incandescent, magnetic low voltage and ELV dimming or 11W nominal universal 120V-277V driver with 0-10V dimming. LED light engine trim module features a plug-in connector for easy installation with IC1RALEDG4 housing. Shallow housing allows for fit in 2 x 6 construction. IC housing designed for uses in IC or non-IC construction.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5"L: 5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)8.2 W
- Lumens(Approx)694 Lm
- OpticsDirectMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VeldoLED ECO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingRemodel IC Air Tight
- Housing Depth4 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeIC1RALED-440LED
