Juno (Acuity Brands Lighting)

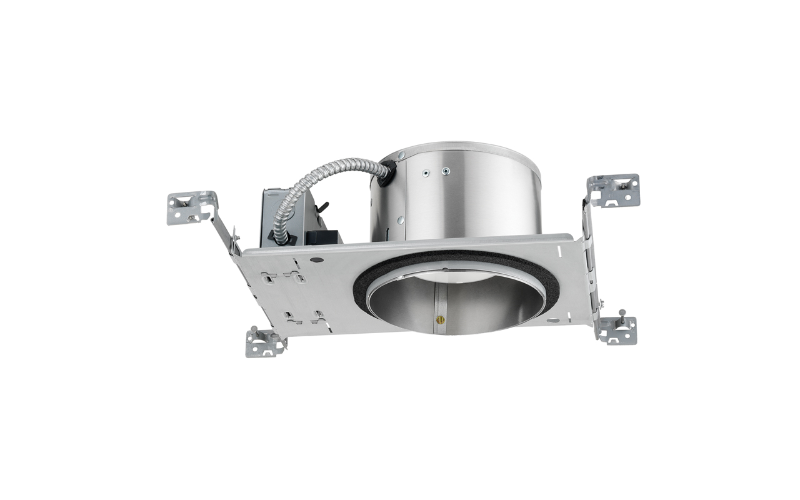

IC22LED G4 06LM. 6'' IC 600 LUMEN LED DOWNLIGHT NEW CONSTRUCTION RECESSED HOUSING OPEN TRIMS.
Configure
Add to project
RESOURCES
DESCRIPTION
Juno® IC22LED 600LM, dedicated 6-inch LED new construction housing with integral light engine and choice of dimmable drivers: 11.5W nominal dedicated 120 volt driver with forward phase and ELV dimming or 12.6W nominal universal 120V-277V driver with 0-10V dimming. Shallow housing construction. IC housing designed for use with IC or non-IC construction. Wide flood optic provided as standard. 90 CRI minimum.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 5/8"L: 7 5/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)8.6 W
- Lumens(Approx)803 Lm
- OpticsDirectNarrowFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VeldoLED ECO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingWood
- HousingIC Air Tight
- Housing Depth5 1/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeIC22LED-G4-06LM-O
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
