Juno (Acuity Brands Lighting)

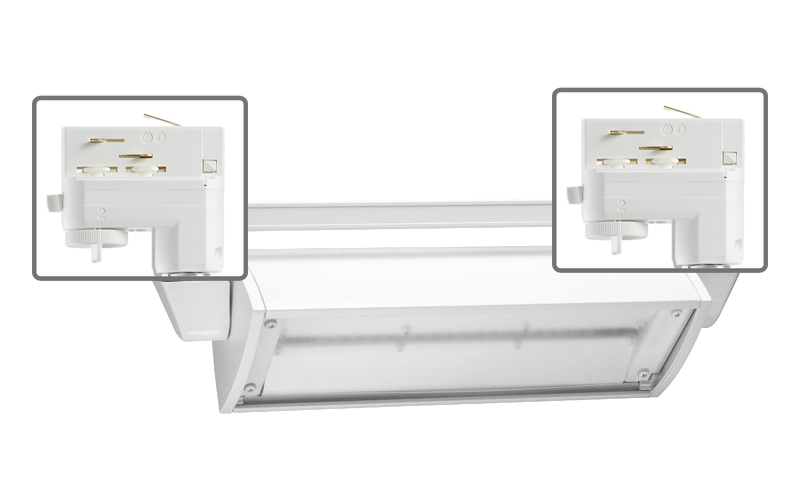

T256L TEK. TRAC-MASTER 35W LED WALL WASH/FLOOD with TEK Adapter.
Configure
Add to project
RESOURCES
DESCRIPTION
The T256L Series wall wash/flood trac fixture delivers a powerful and uniform beam of light, consuming less energy than a similar CMH fixture and offering up to 4-times the rated life. Its shallow profile enables it to blend easily with the trac. Operating at only 35W, it delivers up to 2,223 lumens, yielding an efficacy of up to 64 lm/W. Its unique thermal management design provides a maintenance free 50,000-hours of service life at 70-percent lumen maintenance. Available in 4 color temperatures, this wall wash/flood fixture is compatible with all Juno® line-voltage trac.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/8"L: 15"H: 4 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)35 W
- Lumens(Approx)2223 Lm
- OpticsDirectWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USABAA
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeT256L-TEK
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
