Juno (Acuity Brands Lighting)

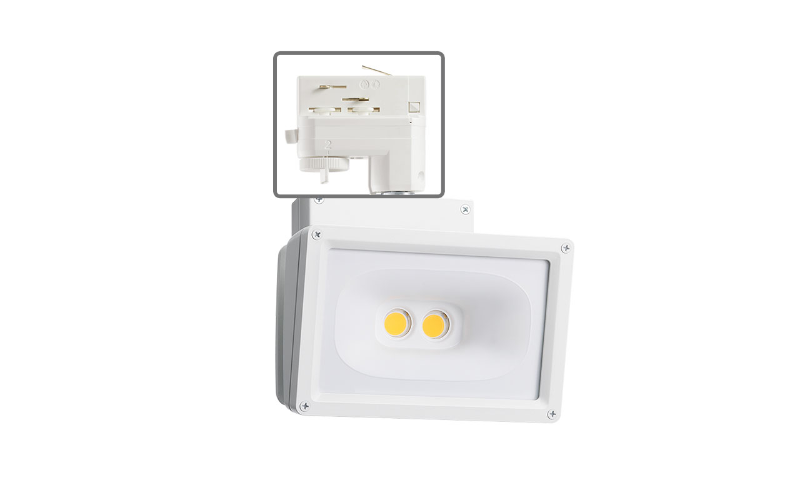

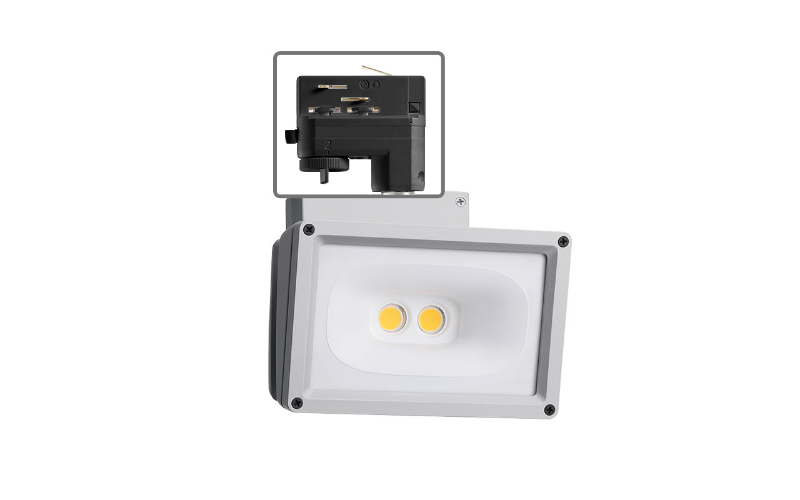

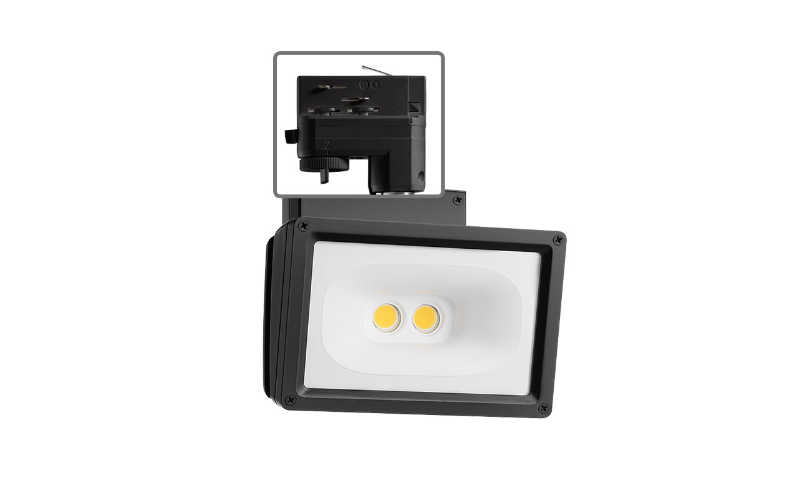

T258L TEK. TRAC-MASTER 20W LED WALL WASH/FLOOD with TEK Adapter.
Configure
Add to project
RESOURCES
DESCRIPTION
Juno® T258L TEK wall wash/flood LED trac fixtures produce up to 2,567 lumens from just 20-watts input, yielding energy-saving efficacies of up to 128 lumens per watt. Installs on 120V, Juno HD Commercial Trac system. The narrow-profile design permits a greater concentration of fixtures to be placed on the same section of trac. Custom hyperbolic reflectors deliver exceptionally uniform, wide beam distributions. The T258L TEK wall wash/flood fixture provides 360° horizontal rotation and 90° vertical aiming. An assortment of light control accessories is available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 11/16"L: 7 1/16"H: 6 15/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90 97
- Watt(Approx)20.1 W
- Lumens(Approx)2567 Lm
- OpticsDirectWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*Energy Star*BAA
- Environment
- Mounting TypeTrack/BuswayMonopoint
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeT258L-TEK
