Juno (Acuity Brands Lighting)

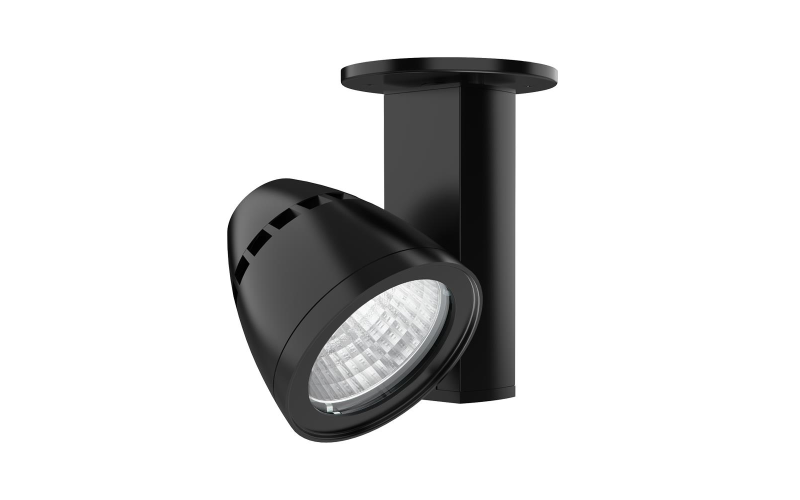

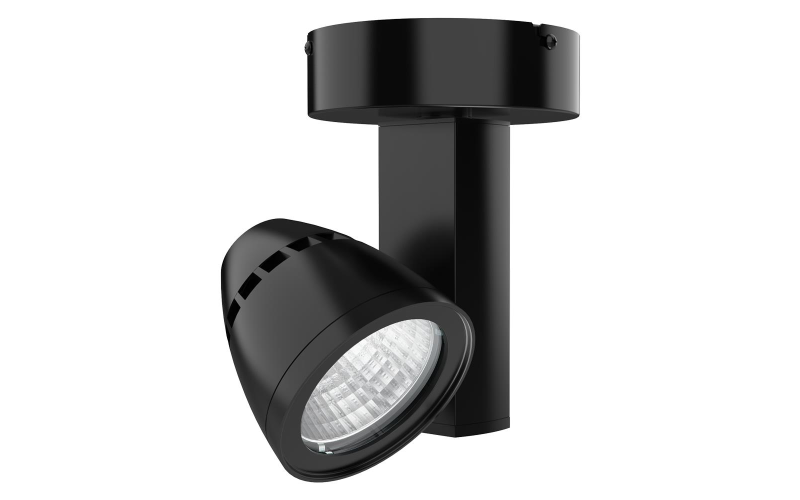

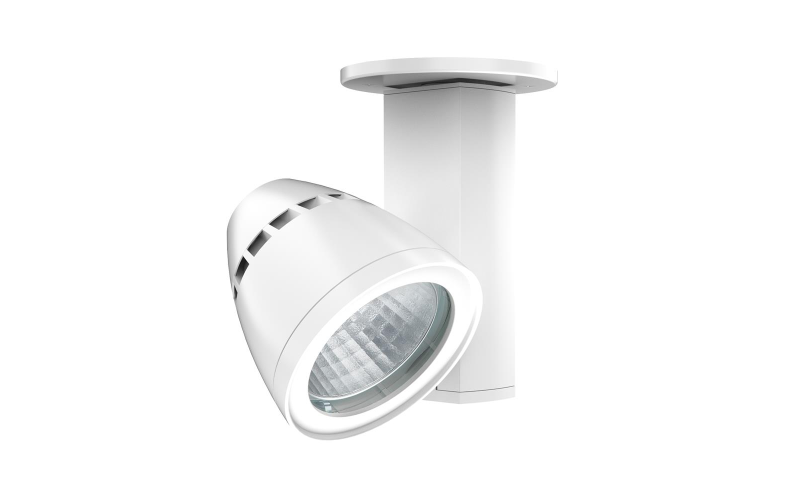

T263L. CPY Canopy Mount Fixture TRAC-MASTER Avant Garde 21W CONIX II LED.
Configure
Add to project




RESOURCES
DESCRIPTION
The sleek, sculpted aesthetic of the Juno® T263L Series Conix® II LED fixture with Canopy Mount option is unrivaled in the industry and offers a fresh, contemporary appeal. These Conix II LED fixtures feature integral reflectors that offer uniform spot, narrow flood, and flood distributions. They can deliver up to 2100 lumens while consuming less than 1/3 of the energy of halogen equivalents. These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V, 277V, or 347V operation and enables phase or 0-10V dimming.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/8"H: 7 1/8"8 5/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90 97
- Watt(Approx)27.4 W
- Lumens(Approx)2001 Lm
- OpticsDirectNarrowMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*BAA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
