Juno (Acuity Brands Lighting)

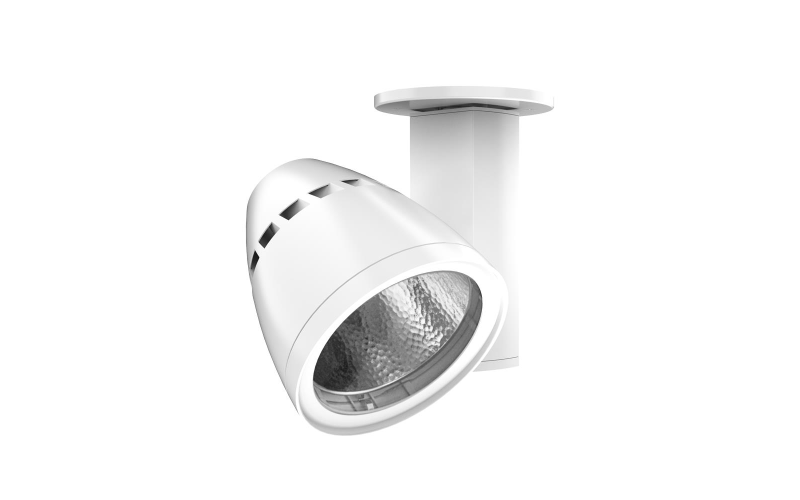

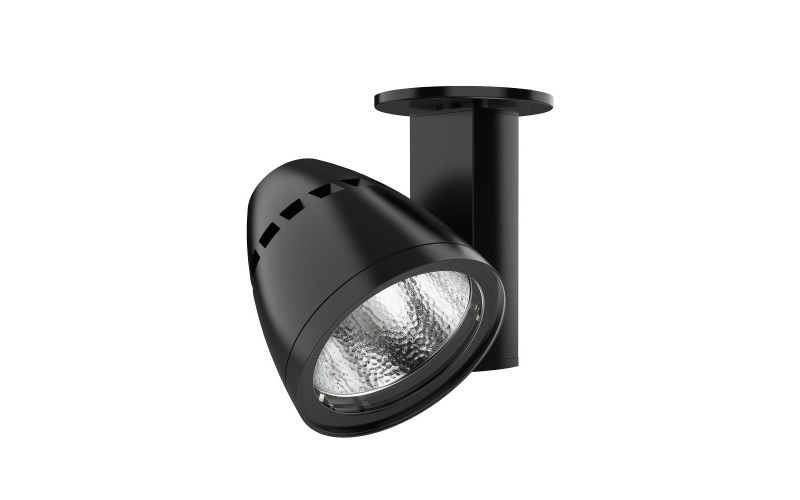

T267L. CPY Canopy Mount Fixture TRAC-MASTER Avant Garde 52W CONIX II LED.
 Configure
 Add to project
DESCRIPTION
The sleek, sculpted aesthetic of the Juno® T267L Series Conix® II LED fixture with Canopy Mount option is unrivaled in the industry and offers a fresh, contemporary appeal. These Conix II LED fixtures feature integral reflectors that offer uniform spot, narrow flood, flood, and wide flood distributions. They require just 52 watts to produce up to 5000 brilliant lumens, utilizing one third the energy of halogen equivalents with a rated life of 50,000-hours. These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V or 277V operation and enables phase or 0-10V dimming.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5 5/8"
    H: 7 1/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    51.9 W
  • Lumens(Approx)
    5042 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULMade in USABAA
  • Environment
    Damp
  • Mounting Type
    Track/Busway
  • Housing
  • Housing Depth
