Juno (Acuity Brands Lighting)

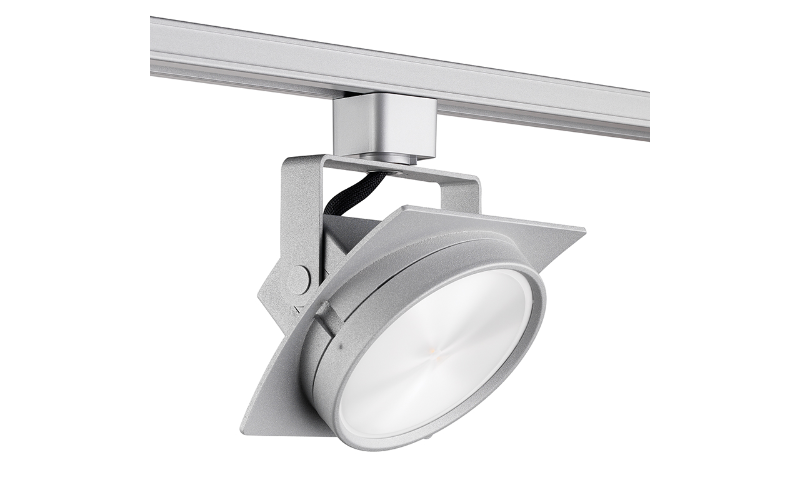

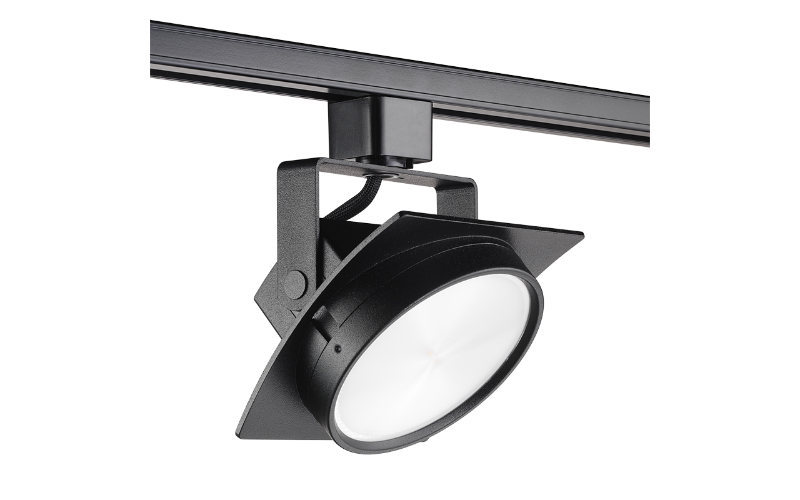

T272L G2. TRAC-MASTER ARC L 15W LED.
Configure
Add to project
RESOURCES
DESCRIPTION
The ultra-efficient optical system of the T272L Arc™ L LED Series track fixture maximizes efficiency while minimizing fixture depth, thereby creating a high-performance track light with a unique, attractive aesthetic. It approximates the light output and distribution of a 75W PAR30 halogen lamp but utilizes about 20% of the energy. The Arc L LED also features various optional accessories including a hexcell louver that optimizes visual cutoff.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5"L: 2 1/2"H: 5 61/64"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)14.6 W
- Lumens(Approx)1749 Lm
- OpticsDirectNarrowMedium
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USADLC*BAA
- EnvironmentDamp
- Mounting TypeTrack/BuswayMonopoint
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeT272L-G2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
