Juno (Acuity Brands Lighting)

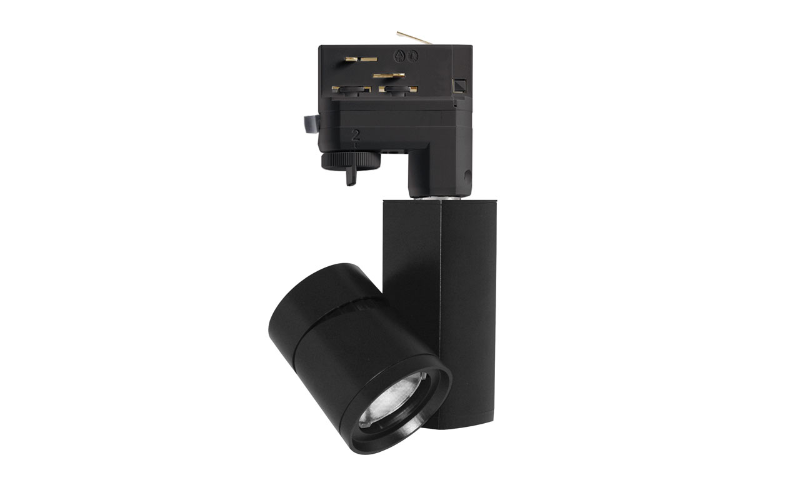

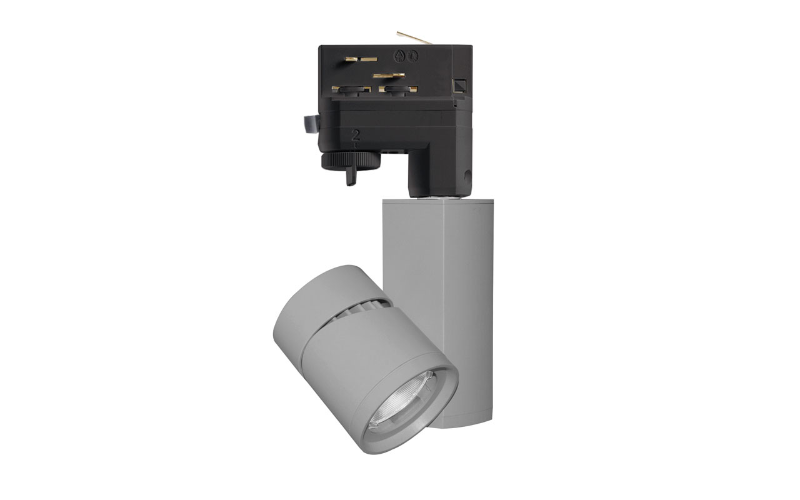

T383L HTEK. TRAC-MASTER 24W VERTICAL CYLINDER LED G2 with HTEK Adapter.
Configure
Add to project



RESOURCES
DESCRIPTION
The classic appearance of the T383L HTEK LED Vertical Cylinder fixture offers a fresh take on the traditional aesthetic. This 24W state-of-the-art trac light delivers up to 2446 lumens, up to 80% more efficient than equivalent halogen and has a rated life of 50,000-hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90+ CRI, rendering colors richly and making whites appear naturally brilliant.
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 3-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI and 90 CRI versions. SpectralWhite version available in 3000K and 3500K, offers 90+ CRI All metal housing and custom designed heat sink provide outstanding thermal management, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver assembled in a side-mount vertical housing to minimize overall fixture footprint. Insulating air gap between driver and LED light engine optimizes thermal operation Precision designed custom TIR optical system available in either spot, narrow flood, flood or wide flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates up to two accessories if desired 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Available in white, black or silver finishes UL/cUL Listed. ENERGY STAR® Certified, DesignLights Consortium® Qualified
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 3-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI and 90 CRI versions. SpectralWhite version available in 3000K and 3500K, offers 90+ CRI All metal housing and custom designed heat sink provide outstanding thermal management, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver assembled in a side-mount vertical housing to minimize overall fixture footprint. Insulating air gap between driver and LED light engine optimizes thermal operation Precision designed custom TIR optical system available in either spot, narrow flood, flood or wide flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates up to two accessories if desired 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Available in white, black or silver finishes UL/cUL Listed. ENERGY STAR® Certified, DesignLights Consortium® Qualified
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 5/8"L: 5 3/8"H: 3 5/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)24.3 W
- Lumens(Approx)2112 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USADLC*T24*BAA
- EnvironmentDamp
- Mounting TypeTrack/BuswayMonopoint
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
