Juno (Acuity Brands Lighting)

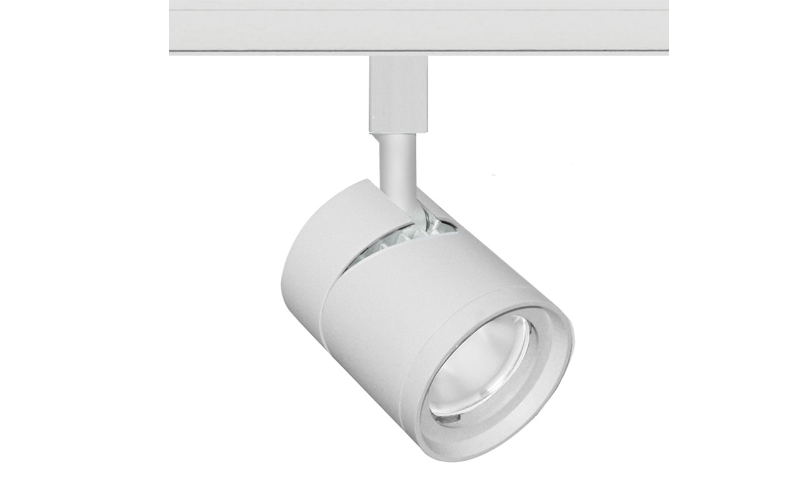

TL381L. TRAC 12 INTEGRAL DRIVER LED CYLINDER SPOTLIGHT 12-VOLT AC.
Configure
Add to project




RESOURCES
DESCRIPTION
The classic appearance of the TL381L, Trac 12™ LED Cylinder fixture offers a fresh take on the traditional aesthetic. This 13W LED Cylinder spotlight approximates the light output and distribution of 75W MR16 halogen lamps, using less than one-fifth the energy and has a rated life of 50,000-hours. Available in 4 color temperatures and 80 or 90 CRI versions, the white-light LED Cylinder is compatible with standard Trac 12 trac, operating with 12-volt AC power. The TL381L can be placed anywhere along the trac, and the trac can be cut to length during installation.
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 2-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI standard and 90 CRI versions (2700K & 3000K All metal housing provides outstanding thermal management of LED, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver concealed in rear of fixture housing to minimize overall fixture footprint Precision designed custom TIR optical system available in either spot, narrow flood or flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates one accessory if desired Multiple transformers/drivers offer compatibility with various Juno trac systems and monopoints; dimmable with factory-approved dimmers 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Available in white, black or silver finishes UL, cUL Listed
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 2-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI standard and 90 CRI versions (2700K & 3000K All metal housing provides outstanding thermal management of LED, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver concealed in rear of fixture housing to minimize overall fixture footprint Precision designed custom TIR optical system available in either spot, narrow flood or flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates one accessory if desired Multiple transformers/drivers offer compatibility with various Juno trac systems and monopoints; dimmable with factory-approved dimmers 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Available in white, black or silver finishes UL, cUL Listed
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: 3 1/8"H: 2 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)13.3 W
- Lumens(Approx)905 Lm
- OpticsDirectMediumFlood
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULBAA
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTL381L
—
