KIM Lighting (Current)

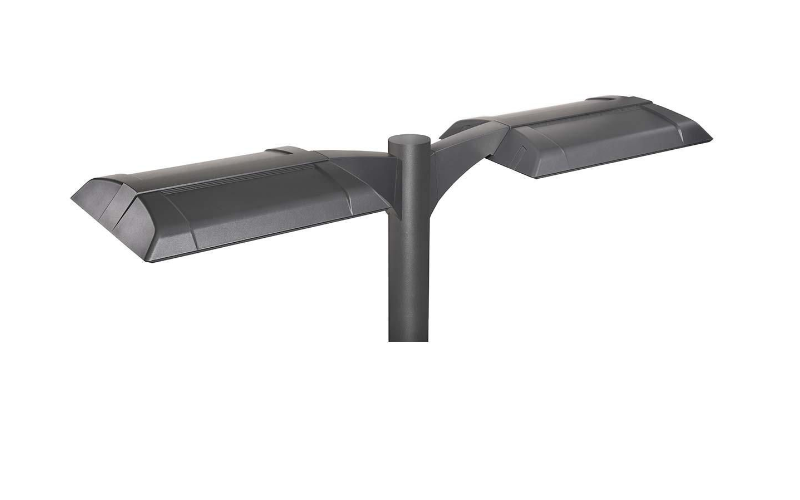

ALT3. Altitude ARCHITECTURAL AREA/SITE.
Configure
Add to project
RESOURCES
DESCRIPTION
The ALTITUDE® is the ultimate in luminaire design innovation. The low-profile housing is proportional and scalable with sizes to cover pedestrian/site/roadway environments
- Three Sizes for maximum flexibility to cover more applications
- IP66 Certified
- Nine IES distribution patterns
- Three Lens options: no lens, clear and diffuse for visual comfort
- NX wired and wireless integrated control system
- 70, 80 and 90 CRI are available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 34.56"L: 34.56"H: 3.5"
- Light SourceLED
- CCT/ColorAmber (WildLife)2700K3000K3500K4000K5000K
- CRI80 90 70
- Watt(Approx)305 W350 W385 W
- Lumens(Approx)41318 Lm46195 Lm51543 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingSiteSync™NX WirelessIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDark SkyDLC*RoHSBAA
- EnvironmentIP66
- Mounting TypePole/Mast ArmWall Arm/CantileverSlip FitterTenon Adapter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeALT3
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
