KIM Lighting (Current)

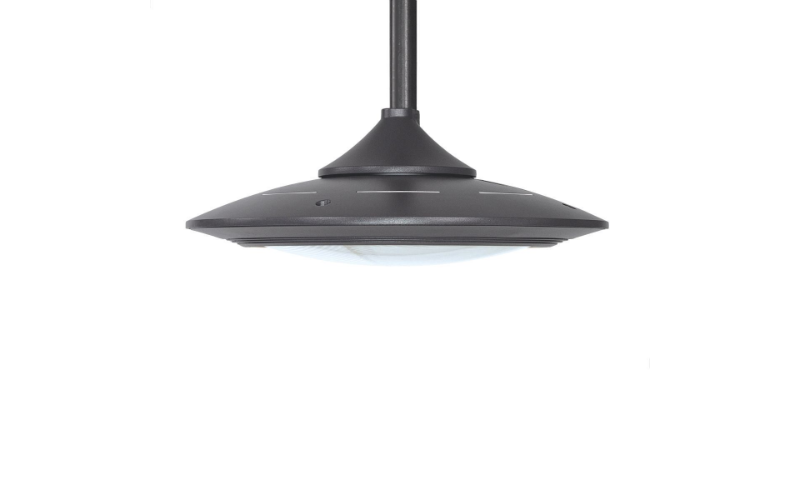

PGL8. PARKING GARAGE LUMINAIRE.
Configure
Add to project
RESOURCES
DESCRIPTION
The PGL8 edge-lit provides effective solutions for meeting the dynamics and challenges of parking garage applications.
- Patent pending edge-lit, drop lens optic
- Uplight standard with no additional wattage consumption
- Surface, Wall mount and Pendant mount with architectural bird shroud
- Integral sensors, battery backup and uplight
- Wireless control Options: NX Lighting Controls, wiSCAPE
- Speed mount for easy installation
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15.88"L: 15.88"H: 3.22"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 70
- Watt(Approx)35 W50 W55 W65 W70 W85 W90 W110 W130 W
- Lumens(Approx)4692 Lm4920 Lm6578 Lm6428 Lm8120 Lm7443 Lm10099 Lm12153 Lm13860 Lm
- OpticsDirectAsymmetric/WashType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothWireless DimmingNX WirelessIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULDLC*
- EnvironmentIP66
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePGL8
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
