KIM Lighting (Current)

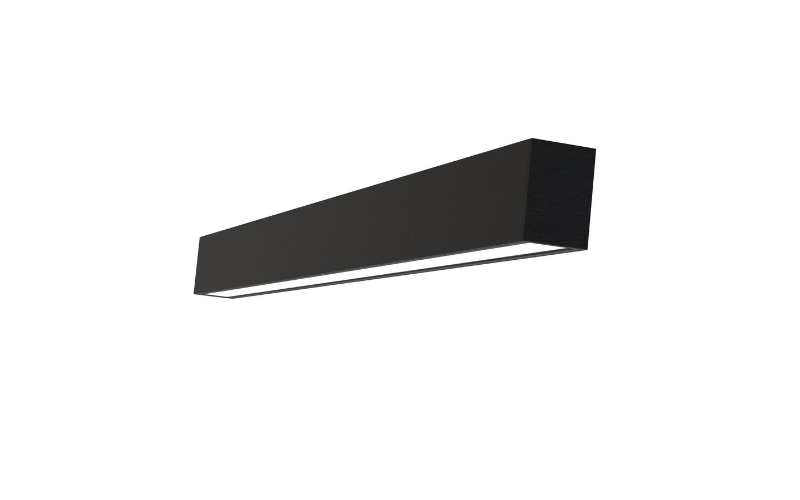

RND. PURSUIT DOWN LINEAR MOUNT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 2’, 3’, 4’, 6’ & 8’ Housing Lengths
- diffused lens option
- Sections can be joined for runs up to 150’ withseamless lens
- Battery Backup for path of egress
- Available distributions: Symmetric, Asymmetric & Wall Graze & Wall Wash Distributions
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.55"L: 2 ft3 ft4 ft6 ft8 ftRun length (Ft)H: 3.65"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90 70
- Watt(Approx)6.58 W/Ft9.8 W/Ft12.94 W/Ft20.45 W/Ft
- Lumens(Approx)300 Lm/Ft665 Lm/Ft961 Lm/Ft1229 Lm/Ft1779 Lm/Ft
- OpticsDirectGrazingGeneral DiffusedAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothNX WirelessIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULRoHS
- EnvironmentIP66
- Mounting TypePendantCeiling SurfaceWall SurfaceWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRND
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
