Kenall (Legrand)

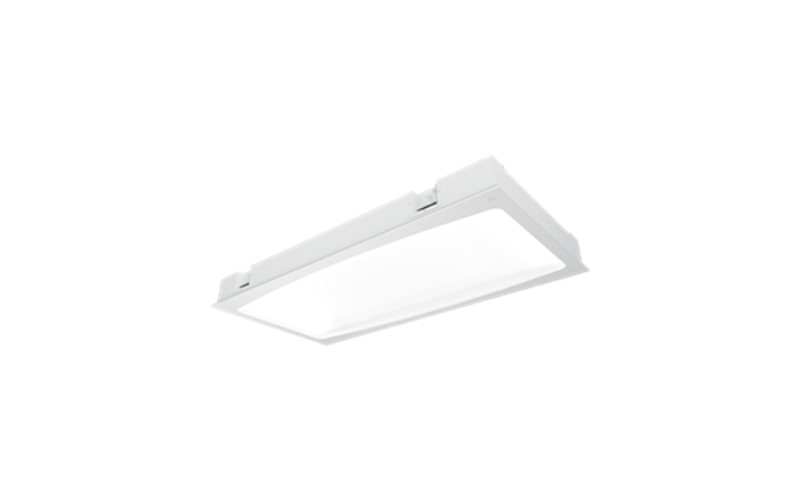

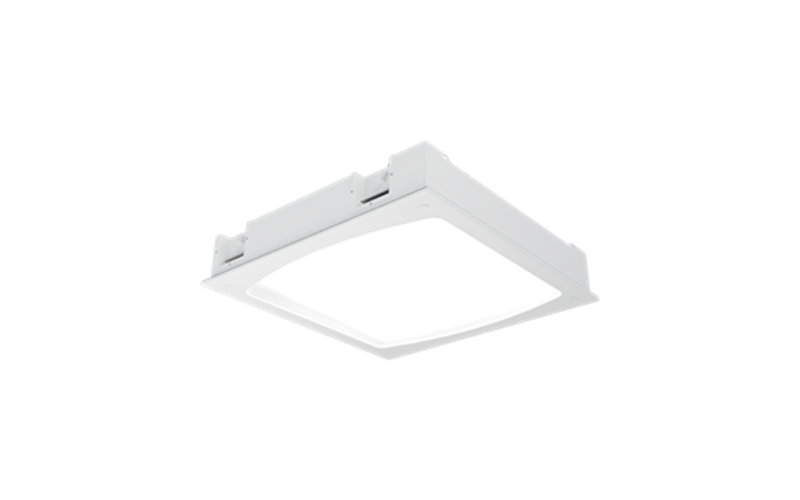

BHPCK. MEDMASTER PILLOW™ Luminaires for Behavioral Health Applications.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Features:
Application(s):
Size(s): 2'x2', 2'x4'
- Sealed 2'×2' or 2'×4' troffer for recessed grid and drywall ceilings
- Ambient, examination and reading multi-function lamping for over-bed applications
- Full backlit LED array and concave thermoformed diffuser for an aesthetically differentiated appearance
- Standard IP65 and NSF2 rating with continuous lens retention and tamper-resistant fasteners for ligature prevention
- Optional control via low-voltage controller (LVC)
Application(s):
- Cafeterias
- Patient Rooms
- Foyers and Lobbies
- Isolation Areas
- Corridors
- Behavioral Health
Size(s): 2'x2', 2'x4'
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)16 W28 W59 W142 W165 W
- Lumens(Approx)1564 Lm3252 Lm6644 Lm17262 Lm20090 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10VDALI
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance102000 h
- CertificatesETLMade in USANSF
- EnvironmentAntimicrobial FinishIP65Healthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingIC
- Housing Depth4.71 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBHPCK
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
