Kenall (Legrand)
CSEDI. SimpleSeal – TUNABLE WHITE LED – INSET DOOR 2'×4'.
 Configure
 Add to project

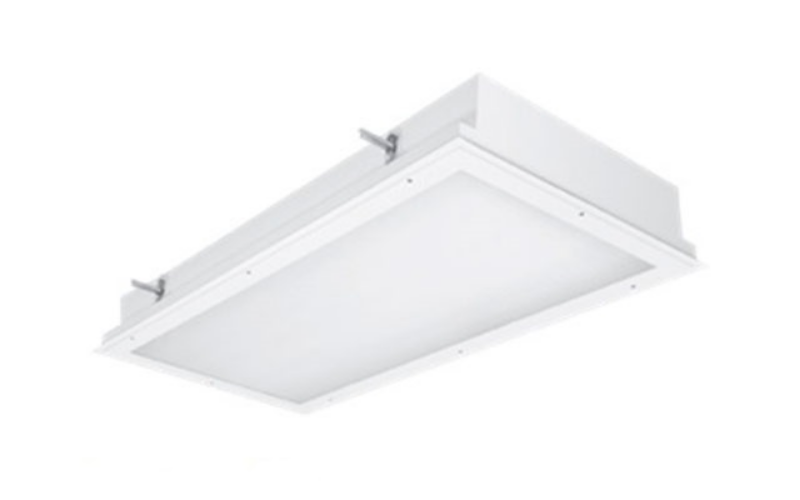

Kenall. CSEDI24-TW. SimpleSeal.
Kenall. CSEDI24-TW. SimpleSeal.
RESOURCES
DESCRIPTION
FEATURES:

  • High-output, high-CRI LED lamp sources with 2700K-6500K white tuning capability
  • Diffused high-efficiency lens for reduced glare
  • Recessed ceiling mount; grid or flange - 2'×4'
  • Suitable for universal installation into 1.0" and 1.5" grid or flange (drywall) ceilings

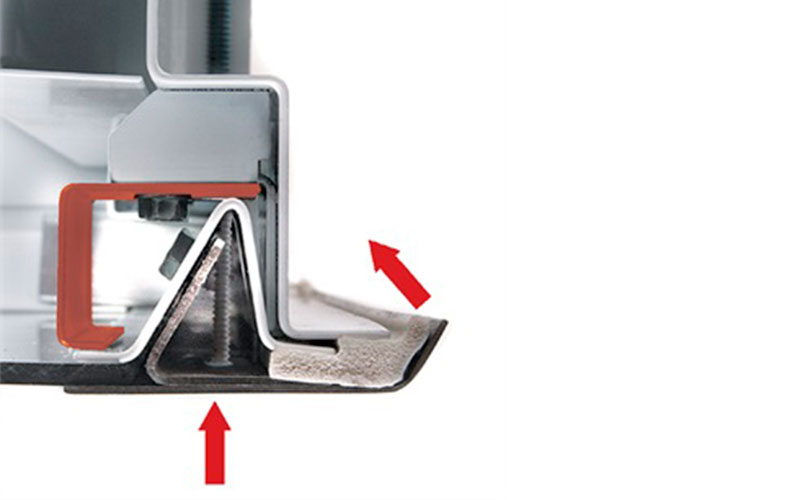

  • One piece sealed housing with smooth exterior doorframe and lens for simplified cleaning protocols


APPLICATION(S):

Pharmaceutical
Kitchen and Food Prep
Biosafety and Containment
Anterooms
Vivariums
Cleanrooms
Containment Areas
Laboratories
Research and Development
Meat Processing Facilities


LAMP TYPE(S):

LED


SIZE(S):

24"×48"
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 4 Ft
  • Light Source
    LED
  • CCT/Color
    Tunable White
  • CRI
    82 92
  • Watt(Approx)
    45 W68 W92 W
  • Lumens(Approx)
    6153 Lm8186 Lm10632 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%0-10VDALIDMX
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    80000 h60000 h
  • Certificates
    UL/CULMade in USANSFDeclareBAA
  • Environment
    Clean RoomAntimicrobial FinishIP65
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    Chicago Plenum
  • Housing Depth
    4.2 ''5.875 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
