Kenall (Legrand)

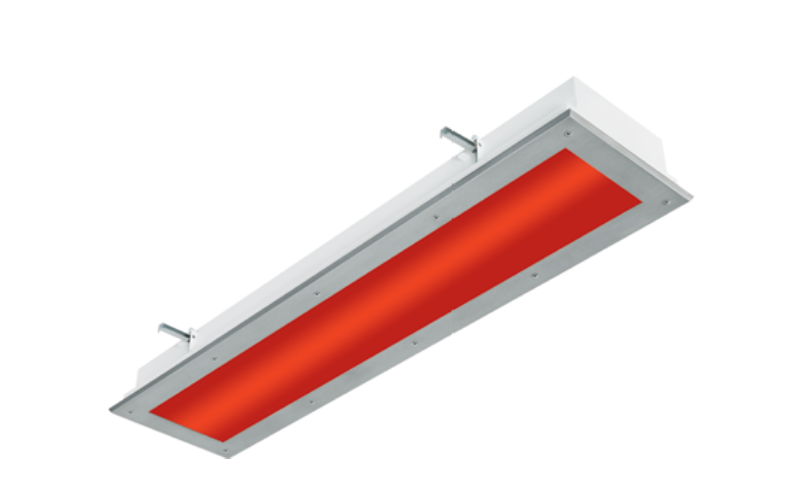

CSEDO. SIMPLESEAL NARROW SPECTRUM S – RED & BIOS SkyBlue – OVERLAPPING DOOR -1'×4'.
 Configure
 Add to project
Kenall.
Kenall.
RESOURCES
DESCRIPTION
FEATURES:

  • Features BIOS SkyBlue Technology to benefit daytime alertness, cognition, mood and circadian rhythms
  • Narrow-spectrum 630nm red LED circuit provides only high-purity light for spectrally-sensitive applications
  • Diffused high-efficiency lens for reduced glare
  • One-piece overlapping door provides air-tight integrity of luminaire
  • Suitable for universal installation into 1.0" and 1.5" grid or flange (drywall) ceilings

APPLICATION(S):

Pharmaceutical
Kitchen and Food Prep
Biosafety and Containment
Anterooms
Isolation Areas
Vivariums
Cleanrooms
Containment Areas
Laboratories
Research and Development
Meat Processing Facilities

LAMP TYPE(S):

LED

SIZE(S):

12"×48"
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft
    L: 4 Ft
  • Light Source
    LED
  • CCT/Color
    3500K4000KRed
  • CRI
    80
  • Watt(Approx)
    71 W94 W
  • Lumens(Approx)
    5347 Lm7683 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%0-10VDALI
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    80000 h60000 h36000 h
  • Certificates
    ETLMade in USANSFDeclare
  • Environment
    Clean RoomAntimicrobial FinishIP66Spectrally-Sensitive Applications
  • Mounting Type
    Ceiling Recessed
  • Housing
    Air Tight
  • Housing Depth
    4.43 ''5.875 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
