Kenall (Legrand)

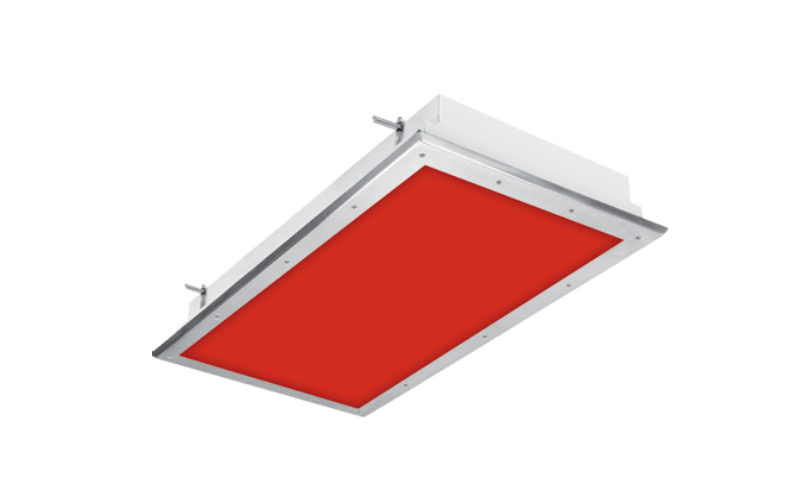

CSEDO. SIMPLESEAL NARROW SPECTRUM CSEDO SERIES – RED & TUNABLE WHITE LED.
 Configure
 Add to project
Kenall.
Kenall.
RESOURCES
DESCRIPTION
FEATURES:
  • Narrow-spectrum 630nm red LED circuit provides only high-purity light for spectrally-sensitive applications
  • High-output, tunable white LED circuit provides visual acuity and accurate color rendition with an adjustable color spectrum
  • Diffused high-efficiency lens for reduced glare
  • One-piece inset doorframe, secured to housing with aircraft cables
  • Suitable for universal installation into 1.0" and 1.5" grid or flange (drywall) ceilings

APPLICATION(S):
Pharmaceutical
Biosafety and Containment
Anterooms
Vivariums
Cleanrooms
Containment Areas
Laboratories
Research and Development

LAMP TYPE(S):
LED

SIZE(S):
24"×48"
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 4 Ft
  • Light Source
    LED
  • CCT/Color
    Tunable WhiteRed
  • CRI
    82 92
  • Watt(Approx)
    67 W90 W114 W
  • Lumens(Approx)
    7674 Lm9931 Lm12548 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%0-10VDALIDMX
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    100000 h80000 h60000 h36000 h
  • Certificates
    UL/CULMade in USANSFDeclareBAA
  • Environment
    Clean RoomAntimicrobial FinishIP66Food ProcessingSpectrally-Sensitive Applications
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    Chicago Plenum
  • Housing Depth
    4.43 ''5.875 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
