Kenall (Legrand)

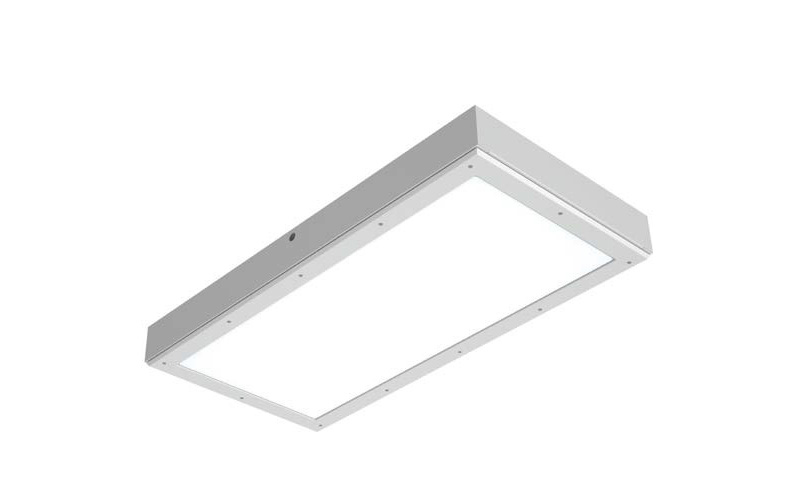

CSESL24. SimpleSeal – SURFACE MOUNT 2'×4'.
 Configure
 Add to project
RESOURCES
DESCRIPTION
FEATURES:

  • Ceiling surface mount – 2'×4'
  • One-piece closed cell extruded nitrile gasket seals doorframe to housing
  • Extruded aluminum, one-piece doorframe with 60° beveled edge for cleanability
  • One-piece, hole-free seam welded housing


APPLICATION(S):

Pharmaceutical
Kitchen and Food Prep
Biosafety and Containment
Anterooms
Vivariums
Cleanrooms
Containment Areas
Laboratories
Research and Development
Meat Processing Facilities


LENS TYPE(S):

.125" #12 Prismatic Polycarbonate
.125" Clear Polycarbonate
.156" Textured Tempered Glass
Specified Lens
.125" High-Impact Clear Acrylic
.125" #12 Prismatic High Impact Acrylic
UV Filtering (Specify)


LAMP TYPE(S):

LED
Linear Fluorescent


SIZE(S):

24"×48"
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 4 Ft
    H: 4.72"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000K
  • CRI
    82
  • Watt(Approx)
    46 W72 W97 W
  • Lumens(Approx)
    6977 Lm9704 Lm12470 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    80000 h60000 h
  • Certificates
    UL/CULMade in USANSFBAA
  • Environment
    Clean RoomIP65Food Processing
  • Mounting Type
    PendantCeiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
