Kenall (Legrand)

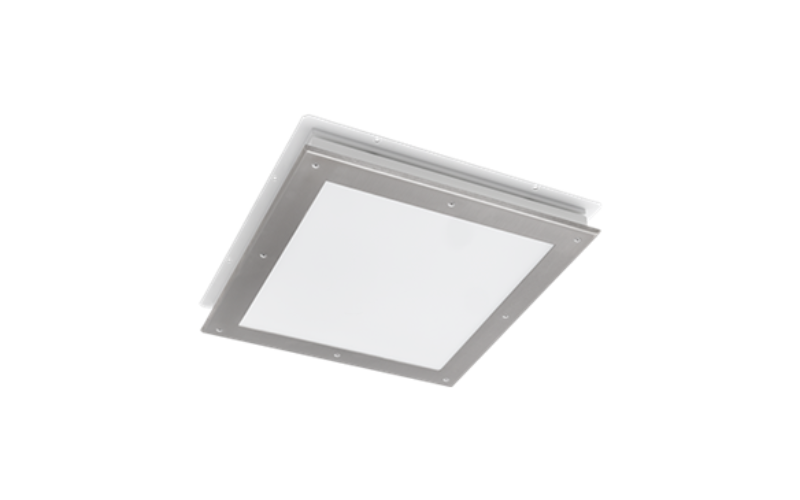

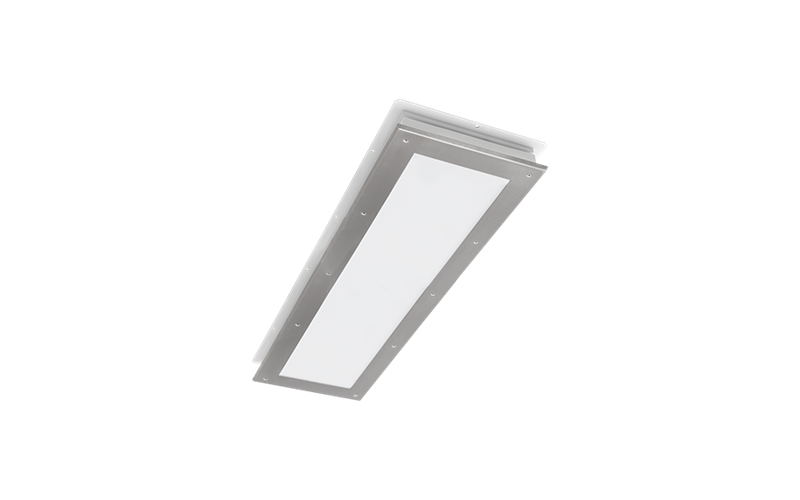

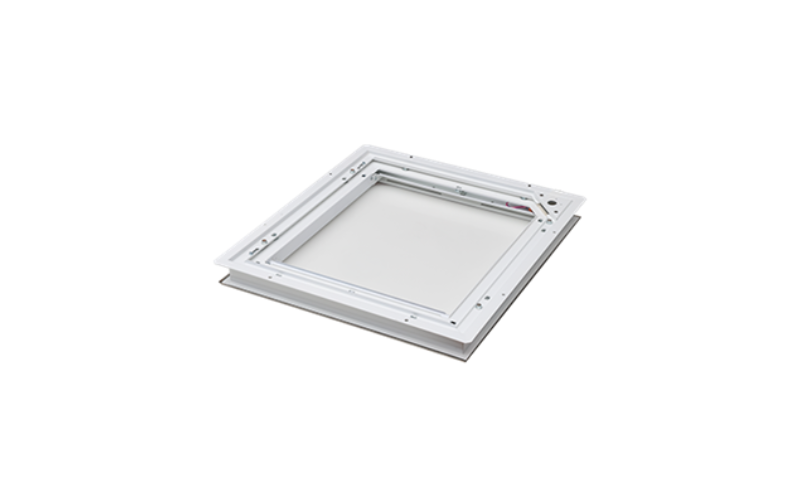

CSSETO. SIMPLESEAL RECESSED WALKABLE TROFFER - Luminaires for Cleanroom Applications.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
• Flush walkable top surface; 1'x4', 2'x2' and 2'x4' Sizes
• Side or top conduit entry available
• Designed for 2, 3 or 4" modular ceilings
• Enhanced lens luminance and 90CRI standard for better visual performance
• Serviceable from above or below
• Side or top conduit entry available
• Designed for 2, 3 or 4" modular ceilings
• Enhanced lens luminance and 90CRI standard for better visual performance
• Serviceable from above or below
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI90
- Watt(Approx)48 W69 W87 W131 W176 W
- Lumens(Approx)7055 Lm10301 Lm12394 Lm18059 Lm23993 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance102000 h
- CertificatesETLMade in USA
- EnvironmentClean RoomIP65Food Processing
- Mounting TypeCeiling RecessedDrywall
- HousingIC
- Housing Depth1.3 ''
