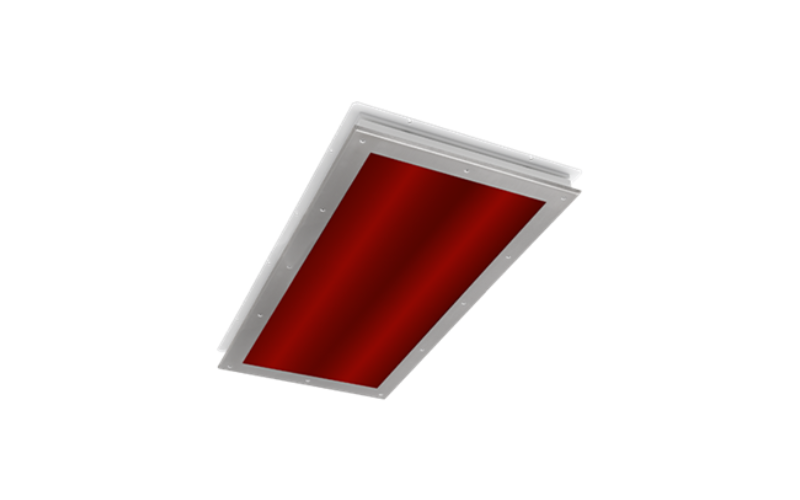

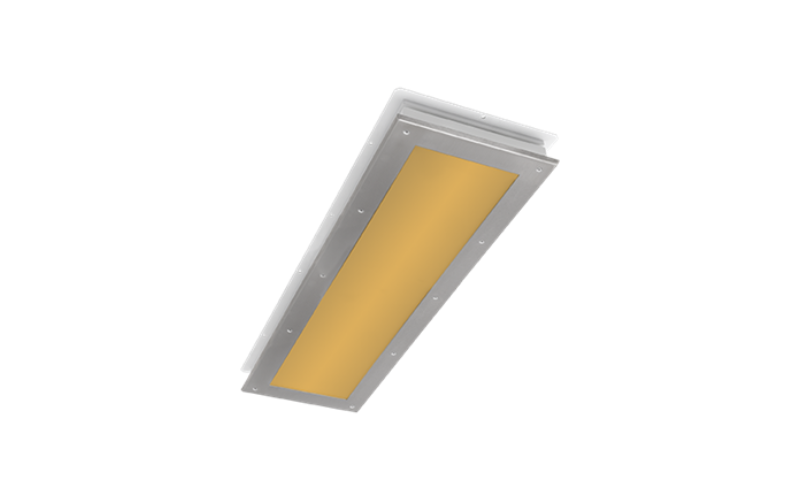

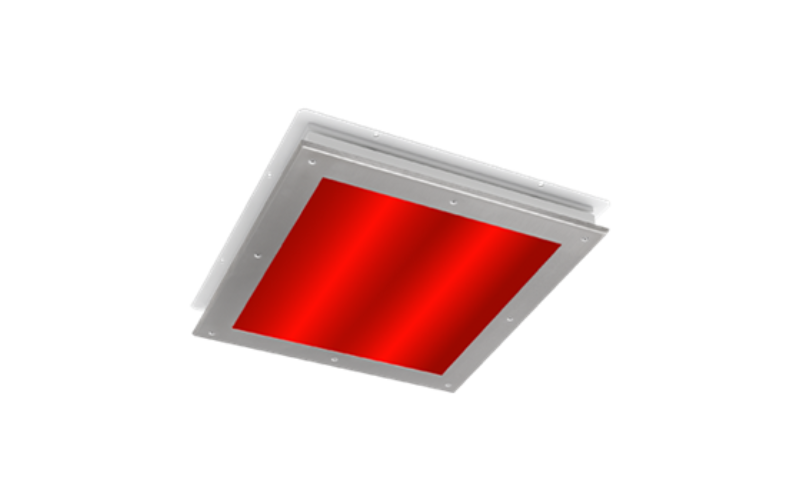

CSSETO. SIMPLESEAL RECESSED WALKABLE TROFFER - Narrow Spectrum Luminaires for Cleanroom Applications.
 Configure
 Add to project
Kenall. CSSETO. SIMPLESEAL RECESSED WALKABLE TROFFER - Narrow Spectrum Luminaires for Cleanroom Applications.
Kenall. CSSETO. SIMPLESEAL RECESSED WALKABLE TROFFER - Narrow Spectrum Luminaires for Cleanroom Applications.
Kenall. CSSETO. SIMPLESEAL RECESSED WALKABLE TROFFER - Narrow Spectrum Luminaires for Cleanroom Applications.
Kenall. CSSETO. SIMPLESEAL RECESSED WALKABLE TROFFER - Narrow Spectrum Luminaires for Cleanroom Applications.
RESOURCES
DESCRIPTION
• Flush walkable top surface rated for 900lb load; 1'x4', 2'x2' and 2'x4' Sizes
• Side or top conduit entry available
• Designed for 2, 3 or 4" thick modular ceilings
• Native 590 nm Amber, 630 nm Red and 660 nm Deep red lamping options for spectrally sensitive applications such as photo-sensitive manufacturing
• Enhanced lens luminance and 90CRI standard for better visual performance
• Serviceable from above or below
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000KYellow/AmberRed
  • CRI
    90
  • Watt(Approx)
    27 W50 W61 W69 W52 W51 W87 W106 W105 W123 W
  • Lumens(Approx)
    1134 Lm1438 Lm1021 Lm2623 Lm2984 Lm2253 Lm4147 Lm6574 Lm5454 Lm10301 Lm12394 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    102000 h
  • Certificates
    ETLMade in USA
  • Environment
    Clean RoomIP65Food ProcessingSpectrally-Sensitive Applications
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    IC
  • Housing Depth
    1.3 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
