Kenall (Legrand)

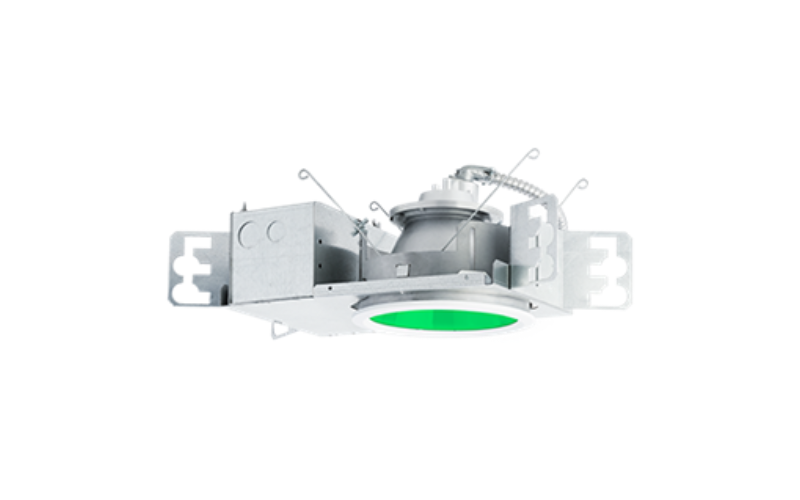

M4DL6. MEDMASTER NARROW SPECTRUM Luminaires for Surgical Applications.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
- 6" sealed, recessed downlight with regressed or flush lens trim
- Conducted emissions controlled as per MIL-STD-461G
- 530nm Green LED source provides increased visual acuity during specialized surgical procedures
- 1% Dimming via 0-10V or DALI control
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"7.75"L: 7.5"7.75"
- Light SourceLED
- CCT/ColorGreen
- CRI
- Watt(Approx)15 W
- Lumens(Approx)732 Lm832 Lm794 Lm
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLNSFBAA
- EnvironmentAntimicrobial FinishWetIP65SurgicalCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth6.68 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeM4DL6-NS
