Kenall (Legrand)
MDL6. MedMaster Downlights.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
FEATURES:
Pharmaceutical
Nursing Stations
Patient Rooms
LENS TYPE(S):
.125" High-Impact Clear Acrylic
LAMP TYPE(S):
LED

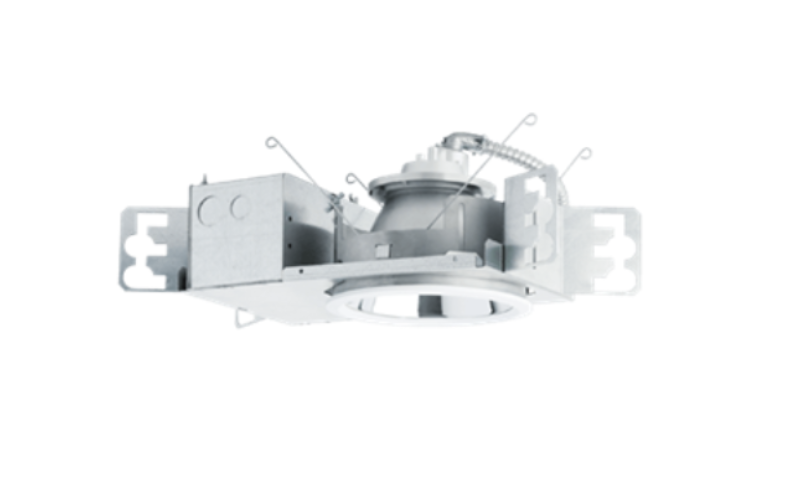

- 6" sealed, recessed downlight with regressed or flush lens trim
- Delivered lumens: 697 - 5,543 lm
- 1% Dimming via 0-10V, DALI or EcoSystem control
Pharmaceutical
Nursing Stations
Patient Rooms
LENS TYPE(S):
.125" High-Impact Clear Acrylic
LAMP TYPE(S):
LED
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"7.75"L: 7.5"7.75"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)9 W18 W24 W32 W43 W
- Lumens(Approx)1210 Lm2116 Lm3105 Lm3905 Lm5001 Lm
- OpticsDirectMediumWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesUL/CULMade in USANSF
- EnvironmentWetIP65
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth6.54 ''6.64 ''7.10 ''
