Kenall (Legrand)

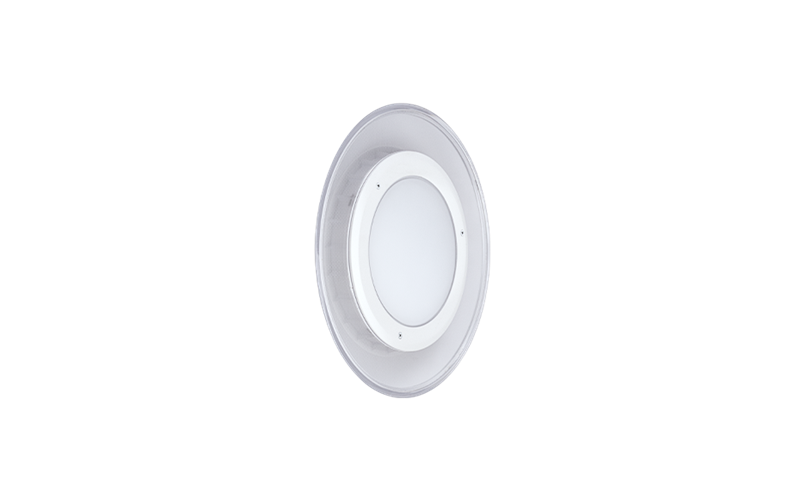

MFD. MedMaster Flair – Dual Engine Lamping.
 Configure
 Add to project
Kenall. MFD. MedMaster Flair – Dual Engine Lamping.
Kenall. MFD. MedMaster Flair – Dual Engine Lamping.
RESOURCES
DESCRIPTION
Features:

  • Center and perimeter light engines with independent illumination and control
  • Edge-lit, diffused center and near-translucent clear perimeter lenses provide unique lighting aesthetic within this product segment
  • Center light engine with static white LED
  • Perimeter light engine with static white, static color, RGB or switchable (white and color)
  • 14” or 18” nominal diameter with 2” overall depth
  • NSF2 and IP64 rating for cleanability in healthcare applications


Application(s):

Parking Garage
Kitchen and Food Prep
Locker Rooms
Cafeterias
Restrooms
Nursing Stations
Patient Rooms
Foyers and Lobbies
Corridors
Exteriors and Entryways


Lamp Type(s):

LED
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 14"18"
    L: 14"18"
    H: 1.9"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    8 W10 W13 W11 W20 W16 W26 W29 W23 W24 W22 W27 W39 W52 Wcustom
  • Lumens(Approx)
    193 Lm235 Lm328 Lm403 Lm334 Lm402 Lm681 Lm538 Lm687 Lm1312 Lm1037 Lm1221 Lm1440 Lm1272 Lm1480 Lm1942 Lm2684 Lm3128 Lm3860 Lmcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%0-10VDALIDMX
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    72000 h
  • Certificates
    UL/CULADA
  • Environment
    Antimicrobial FinishWetHealthcare General
  • Mounting Type
    Ceiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
