Kenall (Legrand)
MFS. MedMaster Flair – Synchronous Engine Lamping.
 Configure
 Add to project

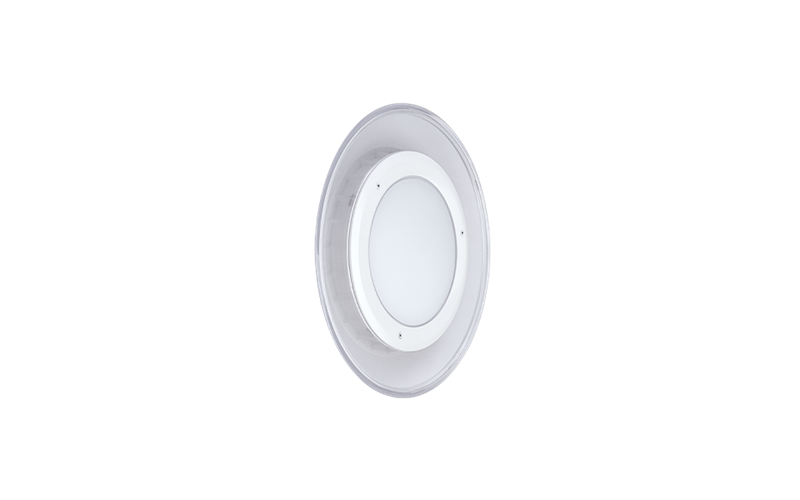

Kenall. MFS. MedMaster Flair – Synchronous Engine Lamping.
Kenall. MFS. MedMaster Flair – Synchronous Engine Lamping.
RESOURCES
DESCRIPTION
Features:

  • Synchronous center and perimeter light engines with unified control
  • Edge-lit, diffused center and near-translucent clear perimeter lenses provide unique lighting aesthetic within this product segment
  • Static and tunable white lamping options; native amber for nighttime operation
  • Surface wall or ceiling installation
  • 14” or 18” nominal diameter with 2” overall depth
  • NSF2 and IP64 rating for cleanability in healthcare applications


Application(s):

Parking Garage
Kitchen and Food Prep
Locker Rooms
Multifamily Housing
Cafeterias
Restrooms
Nursing Stations
Patient Rooms
Foyers and Lobbies
Corridors
Exteriors and Entryways


Lamp Type(s):

LED
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 14"18"
    L: 14"18"
    H: 1.9"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000KTunable WhiteYellow/Amber
  • CRI
    80 90
  • Watt(Approx)
    13 W19 W20 W26 W29 W35 W38 W31 W33 W36 W42 W50 W41 W47 W67 W52 W
  • Lumens(Approx)
    508 Lm735 Lm647 Lm1066 Lm1006 Lm1580 Lm2117 Lm2262 Lm2931 Lm2996 Lm2300 Lm2316 Lm3565 Lm4372 Lm4986 Lm3038 Lm3553 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALI
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    72000 h
  • Certificates
    UL/CULADA
  • Environment
    Antimicrobial FinishWetHealthcare General
  • Mounting Type
    Ceiling SurfaceWall Surface
  • Housing
  • Housing Depth
