Kenall (Legrand)

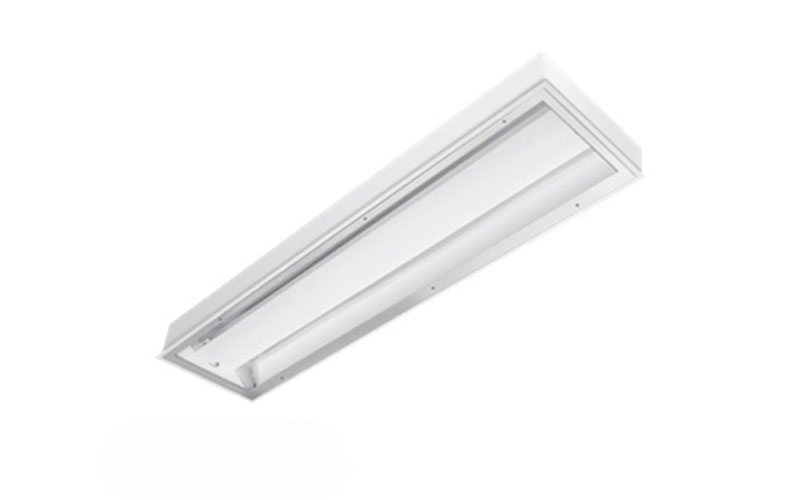

MMAC14. MedMaster MMAC SERIES - TUNABLE WHITE LED.
Configure
Add to project
RESOURCES
DESCRIPTION
FEATURES:
Behavioral Health
LENS TYPE(S):
.187" Clear Polycarbonate
.250" Clear Polycarbonate
.375" Clear Polycarbonate
LAMP TYPE(S):
LED
SIZE(S):
24"×48"
- High-output, high-CRI LED lamp sources with 2700K-6500K white tuning capability
- Ceiling mount – recessed flange or surface; 1'×4', 2'×2' and 2'×4'
- Heavy-duty one-piece TIG and spot welded housing
- Doorframe with Polycarbonate lens secured with Torx® fasteners for security
Behavioral Health
LENS TYPE(S):
.187" Clear Polycarbonate
.250" Clear Polycarbonate
.375" Clear Polycarbonate
LAMP TYPE(S):
LED
SIZE(S):
24"×48"
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 FtL: 4 FtH: 5.56"
- Light SourceLED
- CCT/ColorTunable White
- CRI82 92
- Watt(Approx)46 W
- Lumens(Approx)4429 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%0-10VDALIDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance80000 h
- CertificatesETLMade in USANSF
- EnvironmentAntimicrobial FinishIP65
- Mounting TypeCeiling SurfaceCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth5.56 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMMAC14-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
