Kenall (Legrand)

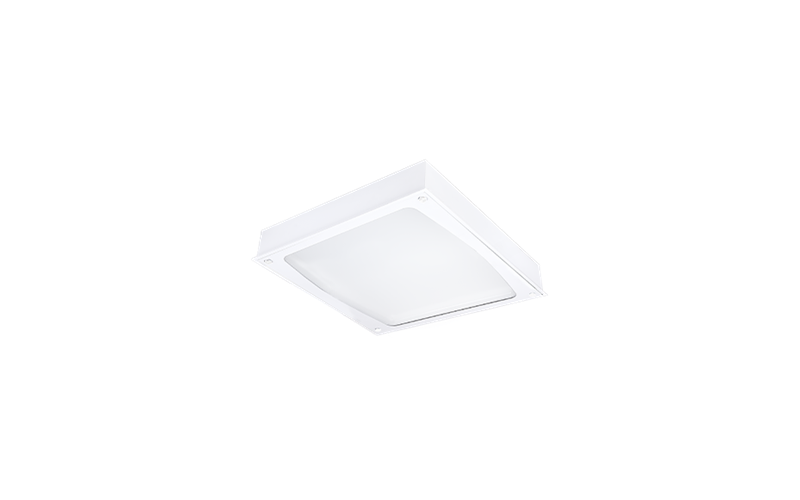

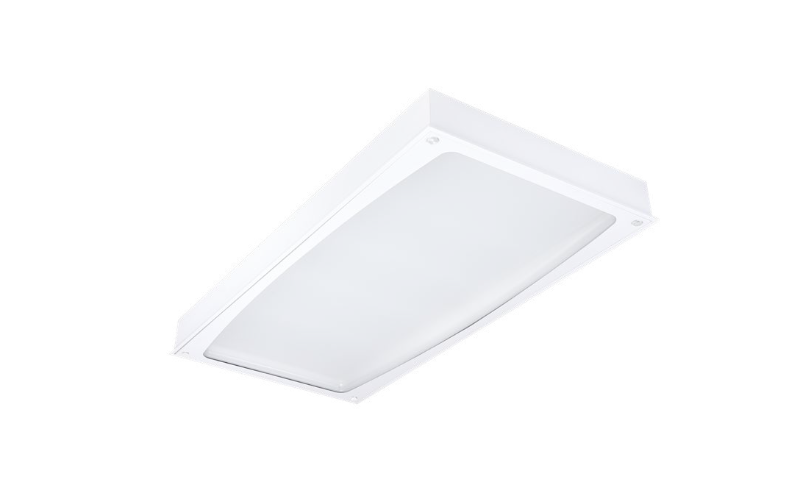

MPCK. MEDMASTER PILLOW Luminaires for Healthcare Applications.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Features:
Application(s):
Patient Rooms
Size(s):
24"×48"
24"×24"
- Sealed 2'×2' or 2'×4' troffer for recessed grid and drywall ceilings
- Ambient, examination and reading multi-function lamping for over-bed applications
- Full backlit LED array and concave thermoformed diffuser for an aesthetically differentiated appearance
- Standard IP64 and NSF2 rating with door construction providing unique room side access via quick-release pins
- Optional control via low-voltage controller (LVC)
Application(s):
Patient Rooms
Size(s):
24"×48"
24"×24"
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)15 W28 W40 W42 W125 W
- Lumens(Approx)1628 Lm3276 Lm5006 Lm5248 Lm14007 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLNSF
- EnvironmentAntimicrobial FinishPatient RoomHealthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingIC
- Housing Depth4.52 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMPCK
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
