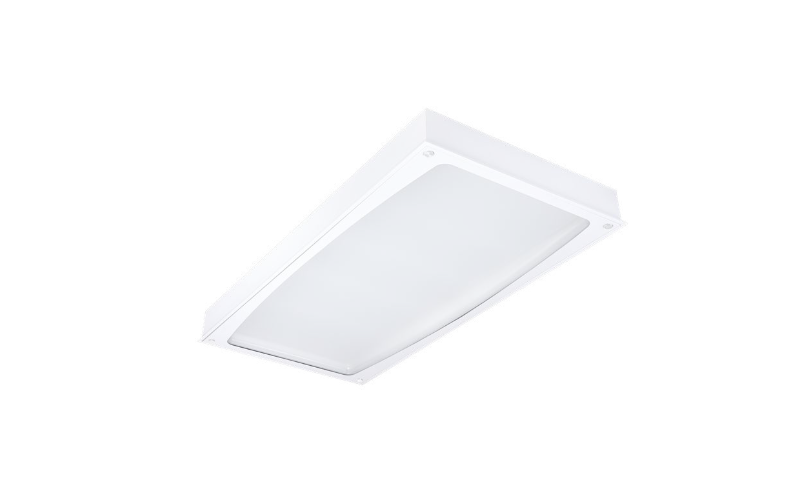

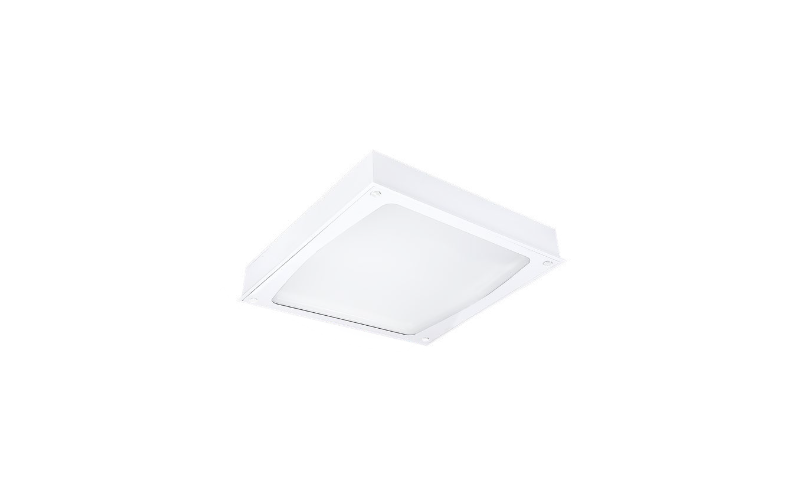

MPCK-TW. MEDMASTER PILLOW PATIENT ROOM LUMINAIRE — TUNABLE WHITE LED Luminaires for Healthcare Applications.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Features:
Application(s):
Patient Rooms
Size(s):
24"×48"
24"×24"
- Sealed 2'×2' or 2'×4' troffer for recessed grid and drywall ceilings
- Ambient, examination and reading multi-function lamping for over-bed applications
- Full backlit LED array and concave thermoformed diffuser for an aesthetically differentiated appearance
- Standard IP64 and NSF2 rating with door construction providing unique room side access via quick-release pins
- Optional control via low-voltage controller (LVC)
Application(s):
Patient Rooms
Size(s):
24"×48"
24"×24"
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/ColorTunable White
- CRI90
- Watt(Approx)18 W31 W48 W43 W118 W
- Lumens(Approx)1628 Lm3258 Lm5012 Lm5279 Lm14021 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance102000 h
- CertificatesETLNSF
- EnvironmentAntimicrobial FinishPatient Room
- Mounting TypeCeiling RecessedT-Grid Ceiling
- Housing
- Housing Depth
