Kurt Versen (Current)

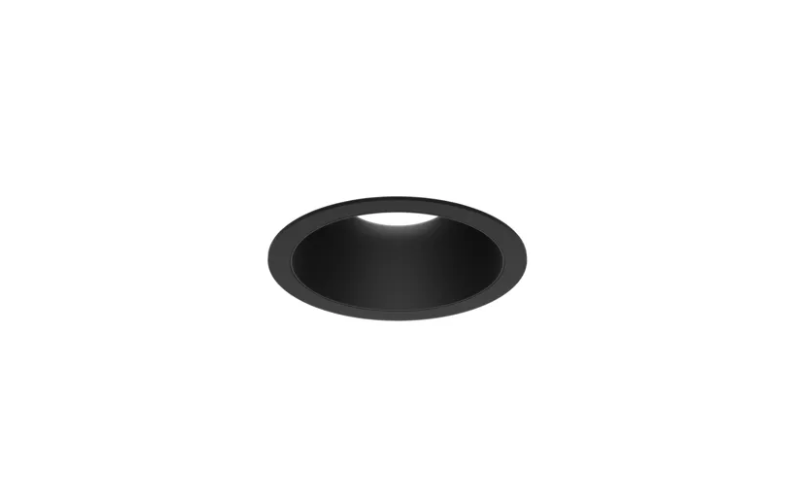

NOR-2.5R. NONI 2.5'' ROUND RECESSED.
Configure
Add to project
RESOURCES
DESCRIPTION
- Downlight (two styles), Lensed Wall Wash (two styles), Adjustable Accent
- 1/4" overlap microflange and flangeless trims featuring CorrectCut
- Cast aluminum, magnetically-attached reflectors with applied finishes
- Ultra-Smooth (SO) & High-CBCP (HO) Optics available (excludes LW)
- New Construction Non-IC, IC & Chicago Plenum applications
- 1600 lumens max @ 80 CRI 3500K
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 2.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90 80
- Watt(Approx)10 W17 W25 W
- Lumens(Approx)813 Lm1309 Lm1734 Lm
- OpticsDirectMediumFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworkLutron®BluetoothNX Wireless
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesUL/CULRoHS
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago Plenum
- Housing Depth2.11 ''3.53 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNOR-2-5R
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
