LLI Architectural Lighting

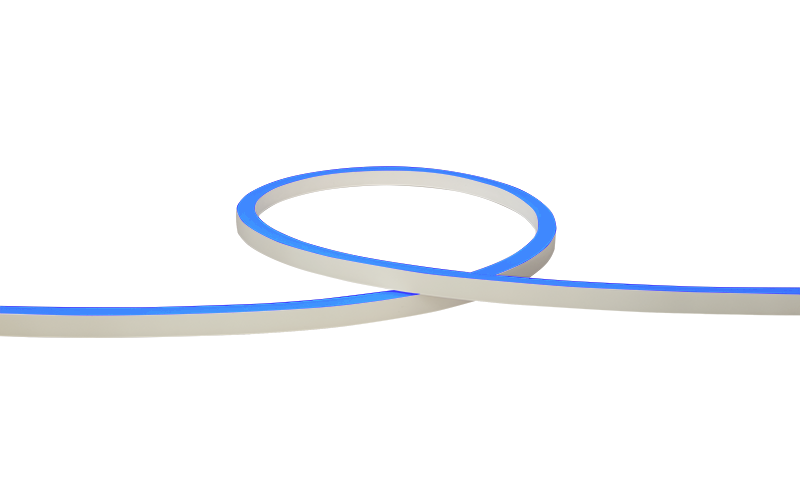

LLI-N1.4W. STATIC COLOR LED NEON - 24V Square Mini Profile / Side Bending / Silicone.
Configure
Add to project
RESOURCES
DESCRIPTION
Low luminosity surface mount linear Neon LED. Recommended applications: Outdoor/Indoor accent lighting, retail signage.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.39"L: Run length (inch)H: 0.39"
- Light SourceLED
- CCT/ColorYellow/AmberRedGreenBlue
- CRI
- Watt(Approx)1.4 W/Ft
- Lumens(Approx)24 Lm/Ft67 Lm/Ft15 Lm/Ft25 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VLutron Hi-lume Premier Eco (L3D0E)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHS
- EnvironmentIP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLLI-N1.4W-67-SC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
