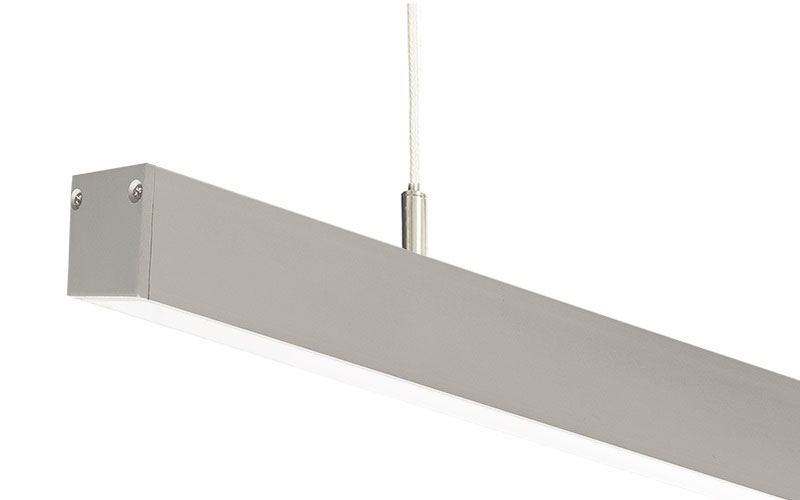

LLI-S-ICN. ICON SUSPENDED EXTRUSION + LED TAPELIGHT
Configure
Add to project
RESOURCES
DESCRIPTION

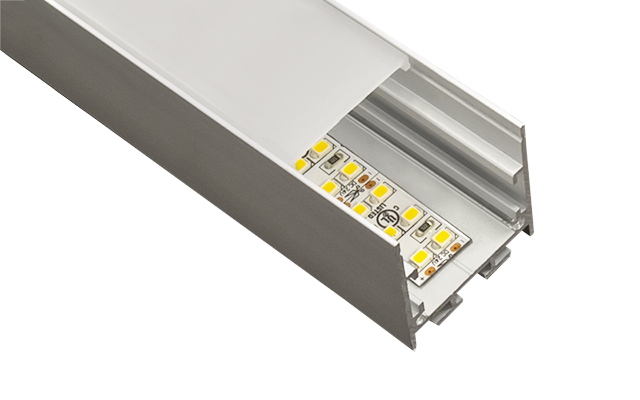

Modular extrusion with a frosted lens that provides a dot-free line of light. 90º corners available for making turns in a variety of applications, such as general lighting, accents, displays, shelving, and signage.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.38"L: Run length (inch)H: 1.38"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5000KYellow/AmberRedGreenBlue
- CRI90 95
- Watt(Approx)0.75 W/Ft1.5 W/Ft2.2 W/Ft2.5 W/Ft3.5 W/Ft4.4 W/Ft5 W/Ft4 W/Ft5.4 W/Ft6.6 W/Ft5.9 W/Ft8.8 W/Ft7.9 W/Ft
- Lumens(Approx)40 Lm/Ft74 Lm/Ft80 Lm/Ft98 Lm/Ft105 Lm/Ft124 Lm/Ft140 Lm/Ft151 Lm/Ft188 Lm/Ft203 Lm/Ft209 Lm/Ft242 Lm/Ft265 Lm/Ft341 Lm/Ft354 Lm/Ft393 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VLutron Hi-lume Premier Eco (L3D0E)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP65
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLLI-S-ICN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
