LLI Architectural Lighting

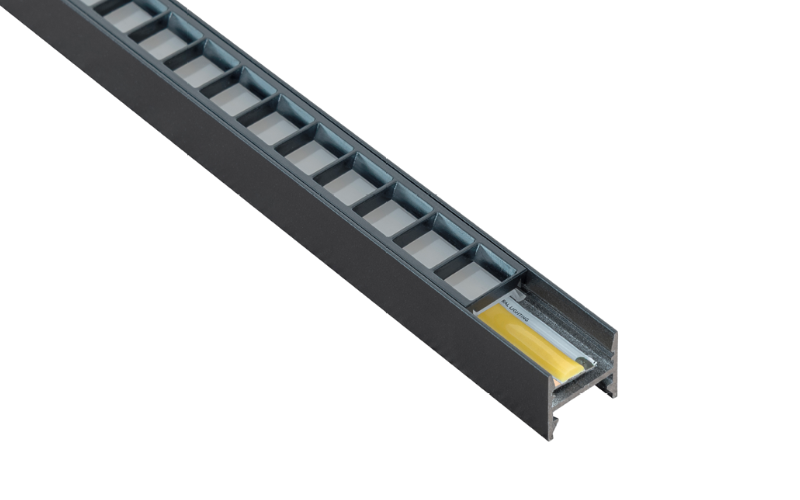

LLI-SQRL. SQUARE LOUVER EXTRUSION + LED TAPELIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION

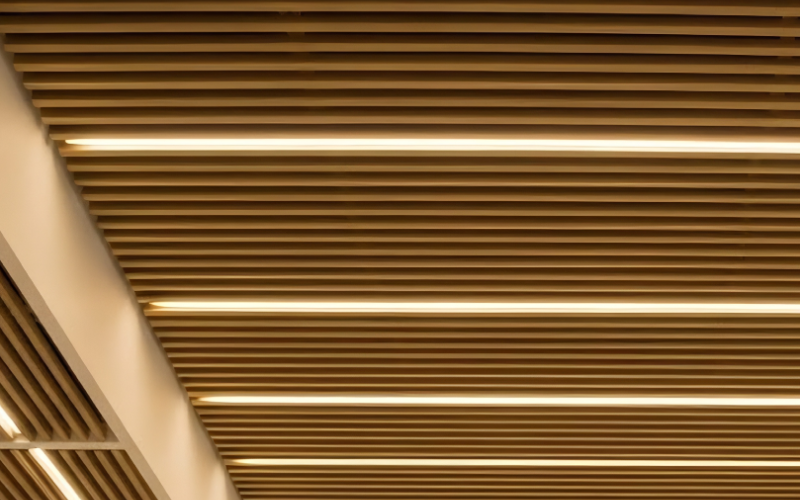

Extrusion has a removable louver insert to prevent glare. Good for accent, general, under cabinet, displays, shelving, signage.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.59"L: Run length (inch)H: 0.53"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000KTunable WhiteRGBYellow/AmberRedGreenBlue
- CRI90
- Watt(Approx)0.75 W/Ft1.5 W/Ft2.2 W/Ft2.5 W/Ft2.7 W/Ft3.1 W/Ft3.5 W/Ft4.4 W/Ft4.6 W/Ft5 W/Ft5.4 W/Ft5.9 W/Ft
- Lumens(Approx)70 Lm/Ft95 Lm/Ft129 Lm/Ft139 Lm/Ft144 Lm/Ft171 Lm/Ft170 Lm/Ft183 Lm/Ft216 Lm/Ft244 Lm/Ft252 Lm/Ft264 Lm/Ft256 Lm/Ft327 Lm/Ft348 Lm/Ft354 Lm/Ft421 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-Dim0-10VLutron Hi-lume Premier Eco (L3D0E)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- Environment
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLLI-SQRL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
