LLI Architectural Lighting

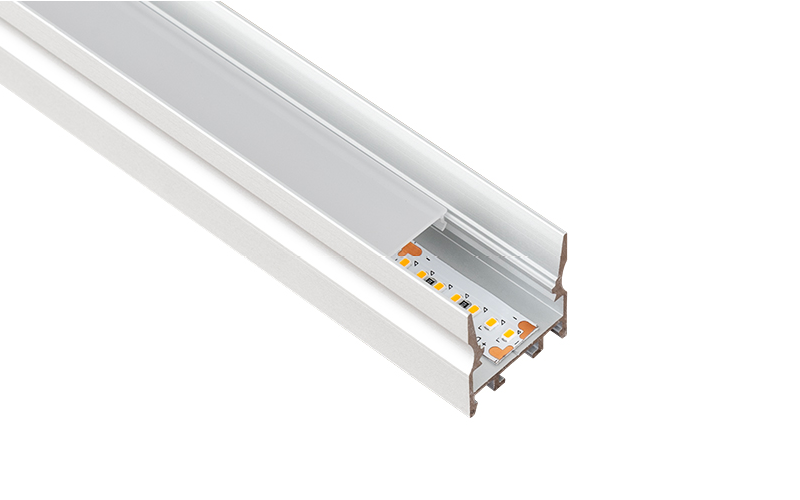

LLI-WDG. WIDE DOUBLE GLARE SHIELD EXTRUSION + LED TAPELIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
Extrusion has two vertical flanges to prevent glare. Good for accent, general, under cabinet, displays, shelving, signage.
Silver anodized finish
Frosted lens
Dimensions: W 0.91″ x H 0.98″
Silver anodized finish
Frosted lens
Dimensions: W 0.91″ x H 0.98″
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.91"L: Run lenght (inch)H: 0.98"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000KTunable WhiteRGBRGBWYellow/AmberRedGreenBlue
- CRI95 90
- Watt(Approx)0.75 W/Ft1.5 W/Ft2.5 W/Ft2.2 W/Ft2.7 W/Ft3.5 W/Ft3.1 W/Ft4.4 W/Ft4.6 W/Ft5 W/Ft4 W/Ft5.4 W/Ft5.3 W/Ft6.6 W/Ft5.9 W/Ft5.8 W/Ft7 W/Ft8.8 W/Ft7.6 W/Ft
- Lumens(Approx)61 Lm/Ft113 Lm/Ft83 Lm/Ft122 Lm/Ft148 Lm/Ft150 Lm/Ft160 Lm/Ft189 Lm/Ft203 Lm/Ft213 Lm/Ft220 Lm/Ft121 Lm/Ft202 Lm/Ft230 Lm/Ft286 Lm/Ft224 Lm/Ft235 Lm/Ft247 Lm/Ft304 Lm/Ft309 Lm/Ft318 Lm/Ft368 Lm/Ft384 Lm/Ft403 Lm/Ft519 Lm/Ft536 Lm/Ft569 Lm/Ft627 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-Dim0-10VLutron Hi-lume Premier 3-wire (L3D03W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentIP65
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLLI-WDG-65
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
