Ledalite (Genlyte Solutions)
290. TruGroove Linear Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION

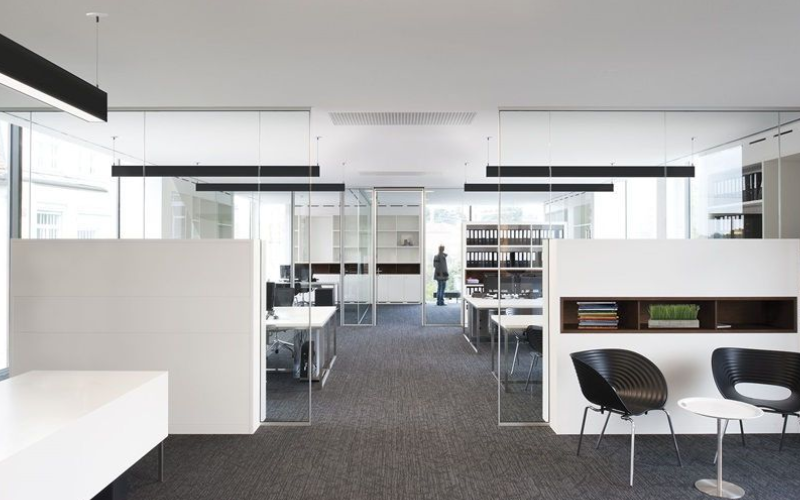

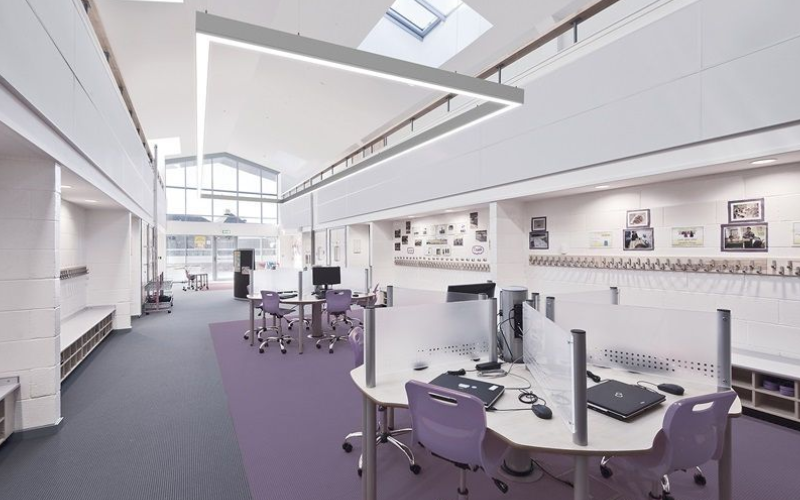

TruGroove suspended, surface & wall is driving performance beyond the edge. Innovative optics deliver exceptional uniformity and wide row spacing from a 3" aperture continuous line-of light. An extended family and refined design are perfect for lighting any professional space.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.23"L: 24"48"72"96"H: 5"3.23"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)4.75 W3.5 W9.75 W7 W9 W5.75 W9.5 W13 W
- Lumens(Approx)394 Lm562 Lm804 Lm826 Lm900 Lm1050 Lm1246 Lm1283 Lm1220 Lm1758 Lm
- OpticsDirectIndirectDirect/IndirectIndirect/DirectGeneral DiffusedAsymmetric/WashBatwingBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworkBluetooth
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLDLC*Declare
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time290-S_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
