Ledalite (Genlyte Solutions)
TC08. TruGroove Linear cove.
Configure
Add to project
RESOURCES
DESCRIPTION

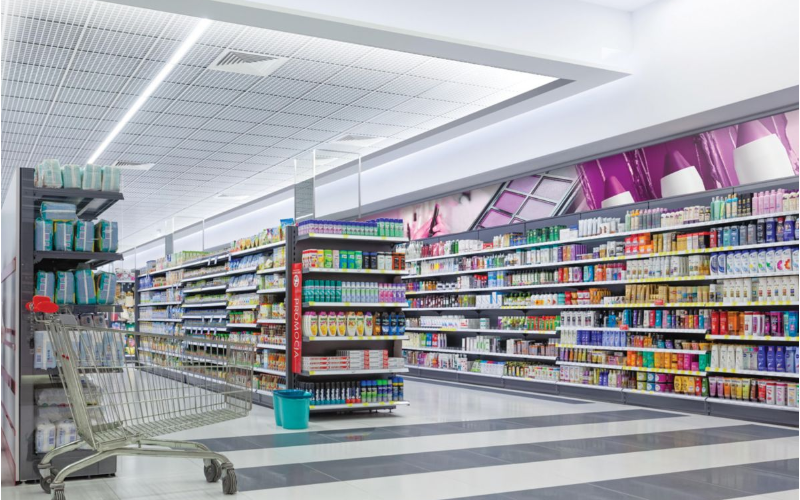

TruGroove cove offers a highly controlled asymmetric light throw, evenly lighting the space and ceiling, not the wall and pocket. This creates a smoothly illuminated low-glare environment with a "quiet" ceiling, free of striations. By adjusting installation angles you can determine your distribution, and multiple lumenpackage choices help you direct the right amount of light within your space.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/8"L: 2 Ft3 Ft4 Ft5 Ft6 Ft8 FtRun length (Ft)H: 1 7/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)2.9 W/Ft2.18 W/Ft4.55 W/Ft3.73 W/Ft5.7 W/Ft9.75 W/Ft7.63 W/Ft12.18 W/Ft
- Lumens(Approx)155 Lm/Ft264 Lm/Ft386 Lm/Ft644 Lm/Ft515 Lm/Ft782 Lm/Ft1292 Lm/Ft1036 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance84000 h
- CertificatesETLDeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTC08
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
