LEDalux

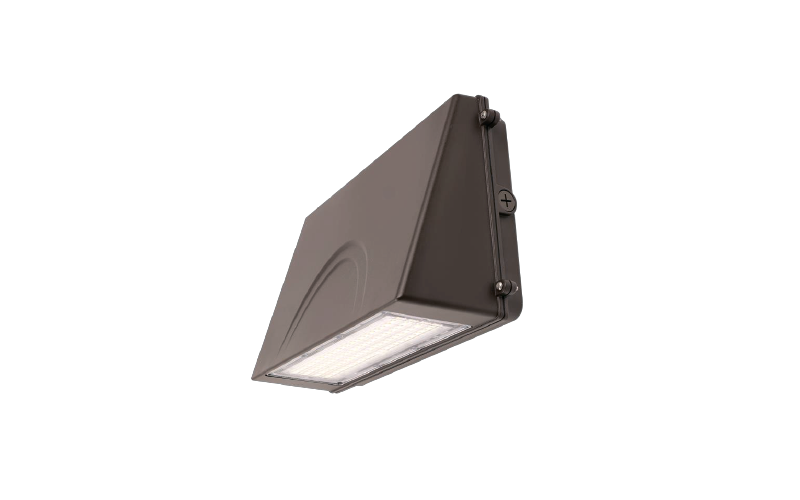

WPFC-LKFS. Full Cut Off Wall Pack - Lumen and Kelvin Field Selectable.
Configure
Add to project
RESOURCES
DESCRIPTION
Our WPFC-LKFS is field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures. It also provides long-life LEDs with at least 70% of initial lumen output (L70) for > 136,000 hours of operation, and at least 90% of initial lumen output (L90) for > 41,000 hours of operation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 14"H: 9"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)36 W48 W57 W72 W94 W113 Wswitchable
- Lumens(Approx)5722 Lm7198 Lm8682 Lm11277 Lm13916 Lm16848 Lmswitchable
- OpticsDirectType II
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance136000 h
- CertificatesUL/CULDLC*
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWPFC-LKFS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
