LTR-4SQD. 4'' SQUARE COMPLEX ENVIRONMENT DOWNLIGHT CLEANROOM / FOOD PROCESSING. by Lifeshield, Current

Lifeshield (Current)

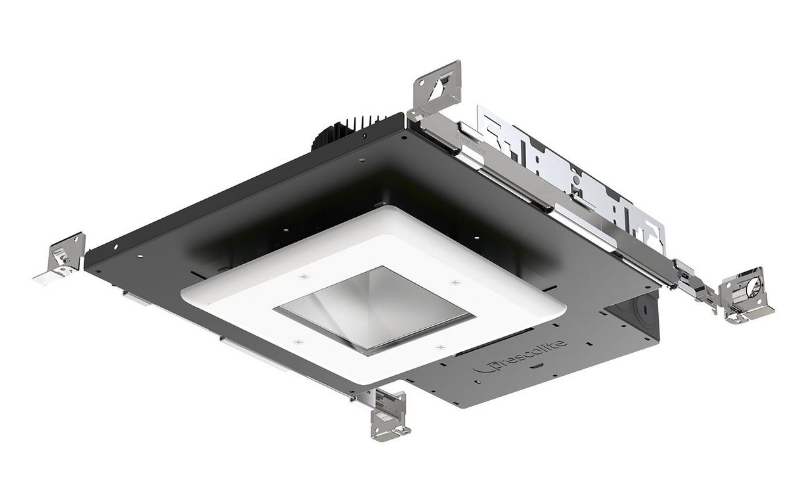

LTR-4SQD. 4'' SQUARE COMPLEX ENVIRONMENT DOWNLIGHT CLEANROOM / FOOD PROCESSING.

Configure

Add to project

RESOURCES

DESCRIPTION

Sealed, ISO 3 rated cleanroom/food processing downlights in 4” and 6” round and square apertures serve as a barrier to dirt and contaminants between the room and plenum.

Durable, marine grade, die cast aluminum bezel trim (low-copper alloy) with optional antimicrobial paint finish, is rated for NSF2 non-food zone.
Flush, .250" thick polycarbonate lens allows for easy wipe down and impedes the accumulation of dirt and organic material
Closed cell silicone gasket protects against dust and water ingress. Supports an ISO 3 cleanroom rating.
Wet location and IP66/IP69K ingress protection ratings allow of use in wet environments, including hose down and high temperature, sanitation applications.
50° cutoff to source and source image provides a low glare, distraction free environment with enhanced visual acuity for intricate tasks.
Five beam distributions and wall wash allow for controlled illumination.
Aluminum anodized reflectors in a wide array of colors and finishes.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 7.67"
L: 7.67"
Light Source
LED
CCT/Color
2700K3000K3500K4000K5000KYellow/Amber
CRI
80 90
Watt^(Approx)
8.2 W12.5 W18 W22.8 W27.8 W34.6 W42.9 W51.5 W
Lumens^(Approx)
597 Lm981 Lm1409 Lm1771 Lm2201 Lm2642 Lm3156 Lm3602 Lm
Optics
DirectMediumFloodWide Flood
Adjustable

Dimming
Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
Controls/Network
BluetoothNX Wireless
Power/Voltage
IntegralUNV 120-277V347V
Integral Emergency
Lumen Maintenance
55000 h
Certificates
CSANSFBAA
Environment
Clean RoomAntimicrobial FinishIP66Food ProcessingIP69K High-Pressure/Steam-Jet Cleaning
Mounting Type
Ceiling RecessedDrywallT-Grid Ceiling
Housing
New ConstructionICChicago Plenum
Housing Depth
4.83 ''6.02 ''7.2 ''7.64 ''

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

LTR-4SQD-CR

Lead time Cost —
CONFIGURATOR

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

Sealed, ISO 3 rated cleanroom/food processing downlights in 4” and 6” round and square apertures serve as a barrier to dirt and contaminants between the room and plenum.

Durable, marine grade, die cast aluminum bezel trim (low-copper alloy) with optional antimicrobial paint finish, is rated for NSF2 non-food zone.
Flush, .250" thick polycarbonate lens allows for easy wipe down and impedes the accumulation of dirt and organic material
Closed cell silicone gasket protects against dust and water ingress. Supports an ISO 3 cleanroom rating.
Wet location and IP66/IP69K ingress protection ratings allow of use in wet environments, including hose down and high temperature, sanitation applications.
50° cutoff to source and source image provides a low glare, distraction free environment with enhanced visual acuity for intricate tasks.
Five beam distributions and wall wash allow for controlled illumination.
Aluminum anodized reflectors in a wide array of colors and finishes.

MORE DESCRIPTION
ADD TO MY PROJECT

SHARE

SEND TO REP
MANUFACTURER'S PAGE SPEC SHEET
